Product Number: FM007-60

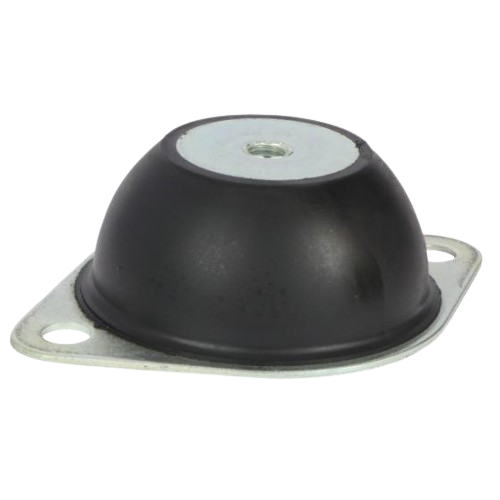

Compact and designed for lighter installations, the FM007-60 is a flanged anti-vibration mount with an M6 thread, 60 Shore A medium-grade rubber, and a 50 mm base diameter, suited to applications where a measured balance of vibration isolation and structural support is required without excess rigidity. With a maximum load rating of 9.0 kg and a controlled deflection of 3.0 mm, it occupies the middle ground in the FM007 range, absorbing vibration effectively whilst maintaining positional stability under load. Constructed using rubber-to-metal bonding, the mount integrates two fixing holes and key dimensions of A 18 mm, B 20 mm, D 50 mm, E 64 mm, F 2 mm, and G 7 mm. The 60 Shore A rubber compound delivers the characteristic balance of the medium grade: sufficient compliance for meaningful vibration attenuation, combined with enough stiffness to restrain lighter machinery and sensitive instruments under their operating loads. The mount may be loaded in shear, compression, or a combination of both. This mount serves the broad middle ground of light-equipment isolation, electronics, instruments, and compact power units across agriculture, marine, power generation, automotive, construction and off-highway, and railway applications. It helps to extend machinery lifespan, protect surrounding structures, and improve operator comfort. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for specialist environments. The FM007 series is also available in 40 Shore A (FM007-40) for softer isolation of particularly sensitive items, and 75 Shore A (FM007-75) for heavier or higher-shock duties.
Providing high levels of vertical static deflection under relatively low load, the Flanged Mountings achieve high levels of vibration isolation and shock absorption. An economical and easy to install anti-vibration, they are suitable for a variety of applications:
The High Deflection Mounts are also available in synthetic rubber compounds, which are resistant to attack from oil and fuel, as well as stainless steel metal parts.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

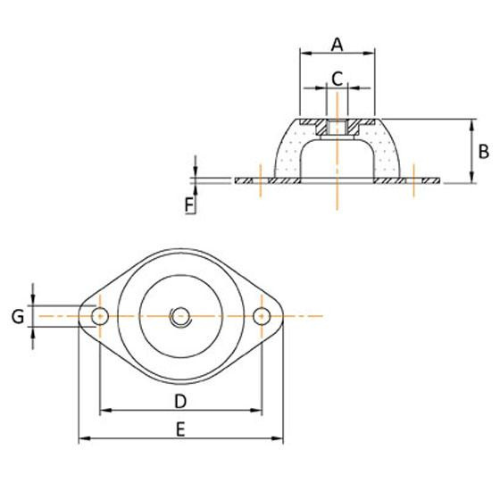

| Fixing Holes | 2 |
|---|---|
| Head Dimensions(A) | 18mm |
| Height (B) | 20mm |
| Fixing Hole Dimensions (C) | M6mm |
| Center Distance Dimensions (D) | 50mm |
| Free Length (E) | 64mm |
| Mounting Base Thickness (F) | 2mm |
| Bore Dimensions (G) | 7mm |
| Max Load (Kg) | 9 |
| Deflection (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

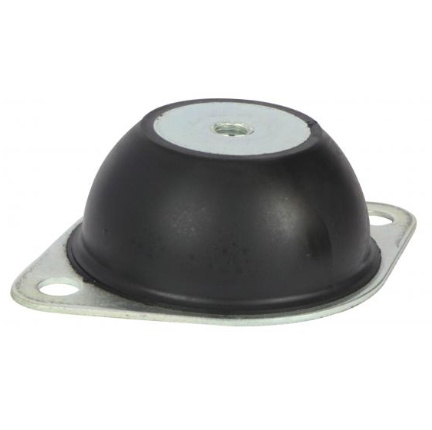

| PRODUCT NUMBER | FM007-75 | FM100-60 | FM100-75 | FM100260 | FM10028-45 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 40mm | ||||
| Size | 18x20mm | 68mm | 100mm | ||
| Deflection | 6.5 | ||||
| Size Range | 51-100mm | 51-100mm | |||
| Thread | M6 | M10 | M10 | M10 | M10 |
A. The FM007-60 has a maximum load rating of 9.0 kg and a deflection of 3.0 mm, placing it in the lighter end of the flanged mounting range.
A. The mount has the following dimensions: A 18 mm, B 20 mm, C M6 thread, D 50 mm, E 64 mm, F 2 mm, G 7 mm, with 2 fixing holes.
A. A 60 Shore A rating represents a medium rubber hardness. It provides a balance between vibration isolation and load-bearing support — softer grades deflect more and isolate better at very low loads, whilst harder grades carry higher loads with less movement. The 60 Shore A grade suits lighter machinery and instruments where both isolation and positional stability matter.
A. This mount is designed for instruments, electronics, and light equipment across a broad range of industries including agriculture, marine, power generation, automotive, construction and off-highway, and railway and mass transit applications.
A. The mount may be loaded in shear, compression, or a combination of both, depending on the installation requirements.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The FM007 series is available in three hardness grades: 40 Shore A (FM007-40) for maximum isolation of sensitive items at very low loads, 60 Shore A (FM007-60) for balanced general-purpose use, and 75 Shore A (FM007-75) for higher loads or shock-intensive duties.
