Product Number: FM400-60

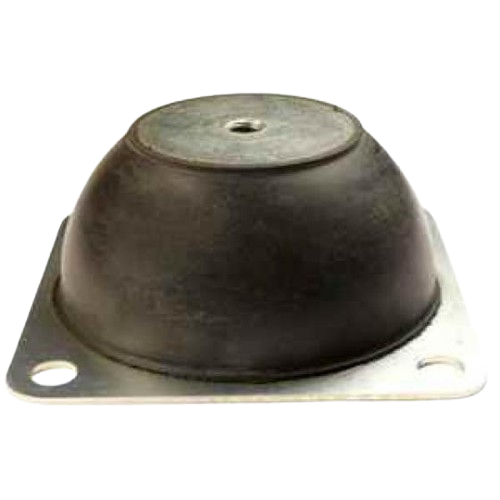

Rated at a maximum load of 540 kg with a controlled deflection of 14.5 mm, the FM400-60 is a heavy-duty flanged anti-vibration mount engineered for machinery and equipment operating across sustained high-load cycles. At 60 Shore A, this medium-grade rubber compound occupies the productive centre of the FM400 range, delivering a calibrated balance of structural support and vibration isolation that neither a softer grade's compliance nor a firmer grade's rigidity can match across the broadest spread of general machinery mounting duties. The mount is built around rubber-to-metal bonded construction, uniting a four-hole fixing flange to a M12 threaded stud within a body measuring 120 mm across dimension D and 150 mm in dimension E. The flanged footprint, 70 mm at dimension A, 63 mm at dimension B. Distributes load evenly over a mounting face, while the 3 mm flange thickness (dimension F) keeps the overall profile compact. The threaded boss extends to a working depth governed by the 14.5 mm G dimension. This geometry supports loading in shear, compression, or a combination of both. The 60 Shore A hardness places this mount squarely in general-purpose territory for industries including construction and off-highway plant, power generation, marine installations, agricultural machinery, automotive applications, and railway and mass transit equipment. Where moderate shock inputs are present alongside sustained static load, the medium-grade rubber absorbs transient peaks without sacrificing the positional control that heavy equipment demands.
Flanged Mountings give high levels of deflection, providing excellent levels of vibration reduction and shock absorption both in vertical & horizontal planes. The Flange Mounts are a low cost & easy to install product. Stainless Steel metals and Oil Resistant / High Temperature rubbers are available on request.
Applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Fixing Holes | 4 |
|---|---|
| Top Width (A) | 70mm |
| Overall Height (B) | 63mm |
| Thread Size (C) | M12 |
| Inner Circle Dimesnion (D) | 120mm |
| Base Plate Width (E) | 150mm |
| Base Thickness (F) | 3mm |
| Fixing Hole Distance (G) | 14.5mm |
| Max Load (kg) | 540 |
| Deflection (mm) | 13 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|

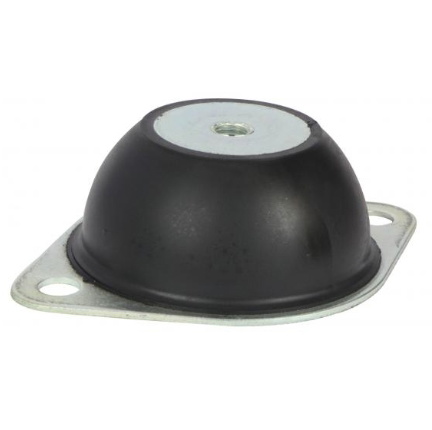

Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM400-60 is rated to a maximum load of 540 kg with a deflection of 14.5 mm under that load.
A. The mount uses an M12 threaded stud (dimension C) and a four-hole fixing flange for secure installation.
A. Dimension A is 70 mm, B is 63 mm, D is 120 mm, E is 150 mm, F (flange thickness) is 3 mm, and G is 14.5 mm.
A. At 60 Shore A, this medium-grade mount balances vibration isolation with structural support, making it suitable for the broad middle ground of general machinery mounting. The softer 40 Shore A grade provides greater deflection and better isolation at lower loads; the harder 75 Shore A carries higher loads with less movement and is suited to more severe duty.
A. The mount may be loaded in shear, compression, or a combination of both.
A. The mount is suited to construction and off-highway plant, power generation, marine installations, agricultural machinery, automotive applications, and railway and mass transit equipment, particularly where sustained high loads and moderate shock inputs are present.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Yes — related flanged mount geometries include FM007, FM100, FM200, FM209, FM1500, and FM1566. See each individual listing for dimensions and load ratings.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
