Product Number: FM8027-60

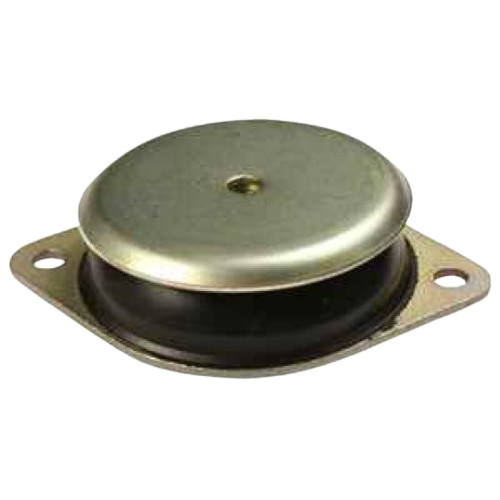

Balancing vibration isolation against structural support, the FM8027-60 capped flanged mount is engineered for the broad middle ground of general machinery mounting where moderate loads and controlled deflection are both required. With an 80mm flange diameter, M8 thread, and a 60 Shore A rubber element, this mount accepts up to 110 kg and delivers 7 mm of deflection, figures that make it well suited to equipment operating under sustained, everyday loads rather than the extremes of either delicate instrument isolation or heavy shock restraint. Constructed using rubber-to-metal bonded technology, the FM8027-60 resists the loosening and separation that mechanical fixing alone cannot prevent. The capped flange design protects the fixing interface and contributes to a clean, stable installation. As with all mounts in this family, the element may be loaded in shear, compression, or a combination of both, giving installers flexibility in orientation to suit the application. The 60 Shore A grade sits at the practical centre of the range: softer than the 75 Shore variant yet firmer than the 45 Shore option, so it neither yields excessively under load nor transmits vibration through an overly stiff rubber body. The FM8027-60 is suited to mainstream industrial and mobile machinery across construction and off-highway, agricultural, power generation, marine, and railway environments, as well as automotive and military and defence applications. It improves machinery lifespan, protects surrounding structures from vibration fatigue, and contributes to operator comfort.
A high-quality rubber compound moulded in between two metal flanges with a secondary metal interleaf bonded into the rubber section. The metal interleaf increases the maximum load capacity of the mountings, meaning they are capable of withstanding significantly higher loads.
Suitable for use with many different types of equipment, typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

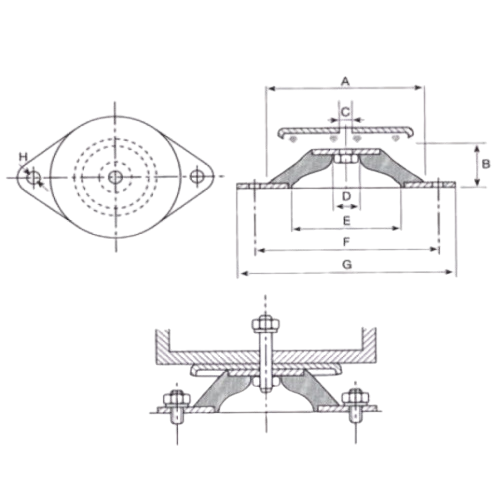

| Top Plate Width (A) | 80mm |
|---|---|
| Overall Height (B) | 27mm |
| Thread Size (C) | M8 |
| Inner Hole Diamension (D) | 25mm |
| Base inner Width (E) | 65mm |
| Middle Base Width (F) | 100mm |
| Overall Base Width (G) | 120mm |
| Fixing Hole Distance (H) | 8.2 |
| Max Load (kg) | 110 |
| Deflection (mm) | 6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM8027-60 has a maximum load rating of 110 kg and a deflection of 7 mm, making it suited to moderate continuous loads in general machinery applications.
A. The principal dimensions are: A 80 mm (flange diameter), B 27 mm, C M8 (thread), D 25 mm, E 65 mm, F 100 mm, G 120 mm, and H 8.2 mm.
A. The 60 Shore A grade balances isolation and support: it provides more deflection and better isolation than the 75 Shore A variant, while carrying higher load with less movement than the 45 Shore A version. It is the general-purpose choice for mainstream machinery operating at moderate loads.
A. The FM8027-60 is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. It improves machinery lifespan, protects surrounding structures, and improves operator comfort.
A. Yes. The mount may be loaded in shear, compression, or a combination of both, providing installation flexibility to suit varied mounting configurations.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Companion mounts include FM8027-45 (45 Shore A) and FM8027-75 (75 Shore A) in the same 80 mm size, plus FM6024, FM10028, FM15039, FM20044, and FM4020 for differing load and dimensional requirements.
