Product Number: FM6024-60

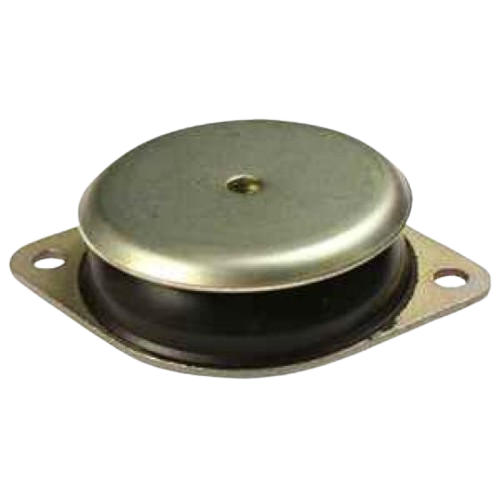

Sitting in the middle of the FM6024 hardness range, the 60 Shore A capped flanged mount FM6024-60 strikes a workable balance between vibration isolation and structural support, making it a sound choice where neither extreme softness nor maximum stiffness is required. With a 60 mm body diameter, M6 thread and rubber-to-metal bonded construction, it handles a maximum load of 25 kg with a controlled deflection of 3 mm, positioning it squarely for general-purpose machinery mounting across a broad spread of industries. The medium 60 Shore A rubber compound sits at the crossover point between compliance and rigidity: it absorbs vibration effectively across the mid-load range while resisting excessive movement under operational forces. Rubber-to-metal bonding ensures the rubber element remains positively located under both shear and compression loading, and the capped flange design provides a defined mounting face for consistent installation. Stainless steel metals and oil-resistant or high-temperature rubbers are available on request for demanding environments. With key dimensions of A: 60 mm, B: 24 mm, D: 14 mm, E: 34 mm, F: 76 mm, G: 90 mm and H: 6.2 mm, this mount suits many general-purpose plant and equipment across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. Mounts may be loaded in shear, compression, or a combination of both. The FM6024 is available in 45 Shore A (FM6024-45) and 75 Shore A (FM6024-75).
A high-quality rubber compound moulded in between two metal flanges with a secondary metal interleaf bonded into the rubber section. The metal interleaf increases the maximum load capacity of the mountings, meaning they are capable of withstanding significantly higher loads.
Suitable for use with many different types of equipment, typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

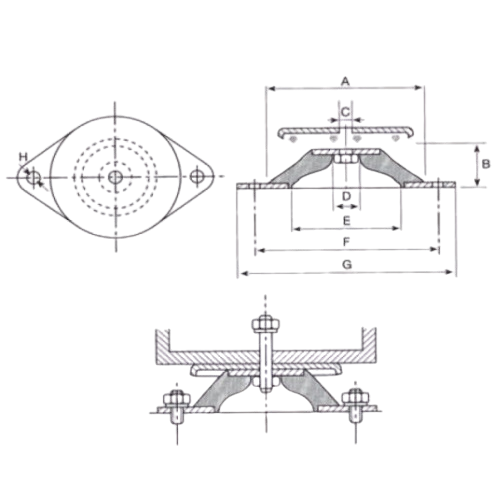

| Top Plate Width (A) | 60mm |
|---|---|
| Overall Height (B) | 24mm |
| Thread Size (C) | M6 |
| Inner Hole Diamension (D) | 14mm |
| Base inner Width (E) | 34mm |
| Middle Base Width (F) | 76mm |
| Overall Base Width (G) | 90mm |
| Fixing Hole Distance (H) | 8.5mm |
| Max Load (kg) | 25 |
| Deflection (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM6024-60 is rated to a maximum load of 25 kg with a deflection of 3 mm at that load.
A. The principal dimensions are: A 60 mm, B 24 mm, thread C M6, D 14 mm, E 34 mm, F 76 mm, G 90 mm, and H 6.2 mm.
A. At 60 Shore A, this mount occupies the middle ground between softer and firmer grades — it provides effective vibration isolation across the mid-load range while limiting excessive deflection under operational forces, making it suitable for general-purpose machinery mounting rather than either very light sensitive installations or high-load restraint duties.
A. This mount may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation.
A. It is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications where general-purpose vibration isolation and support are required.
A. Yes — stainless steel metals and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. The FM6024 geometry is available in 45 Shore A (FM6024-45) and 75 Shore A (FM6024-75). Alternative body sizes in the same capped flanged style include FM4020, FM8027, FM10028, FM15039 and FM20044.
