Product Number: FM4020-60

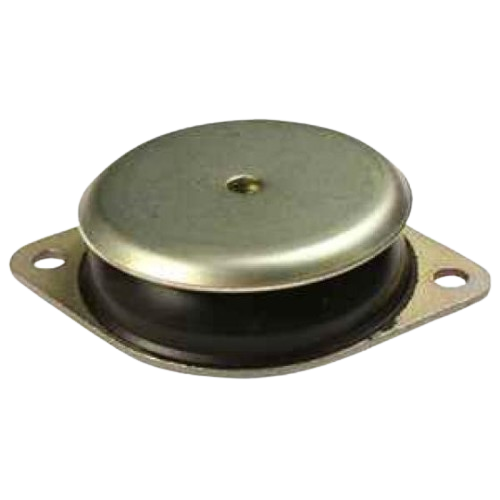

Balancing vibration isolation with structural support, the FM4020-60 is a 40mm capped flanged mount with an M6 thread and 60 Shore A rubber hardness, the medium grade in this compact geometry, rated to a maximum load of 10 kg with a deflection of 2 mm. Its rubber-to-metal bonded construction and moderate compliance make it the practical general-purpose choice across the 40mm flanged range, suited to installations where neither aggressive isolation nor maximum load capacity is the primary requirement, but a reliable equilibrium of both is essential. As the middle grade, the 60 Shore A rubber delivers a measured deflection characteristic that accommodates everyday operational vibration without the pronounced movement of softer grades, while remaining lighter in duty than the firmer 75 Shore variant. This balance lends the mount to a broad range of machinery mounting scenarios in which controlled, predictable damping under moderate load is the deciding factor. The rubber-to-metal bond provides consistent performance in shear, compression, or combined loading conditions. Capped construction protects the metal insert, contributing to durability in service. The FM4020-60 serves industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. At 40mm diameter with key dimensions A: 40, B: 20, D: 19, E: 29, F: 52, G: 64, and H: 6.2 mm, it is the smallest geometry in the flanged mount family and is particularly well matched to instruments, light equipment, and electronics where a medium-grade mount provides the right blend of support and damping.
A high-quality rubber compound moulded in between two metal flanges with a secondary metal interleaf bonded into the rubber section. The metal interleaf increases the maximum load capacity of the mountings, meaning they are capable of withstanding significantly higher loads.
Suitable for use with many different types of equipment, typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Top Plate Width (A) | 40mm |
|---|---|
| Overall Height (B) | 20mm |
| Thread Size (C) | M6 |
| Inner Hole Diamension (D) | 19mm |
| Base inner Width (E) | 29mm |
| Middle Base Width (F) | 52mm |
| Overall Base Width (G) | 64mm |
| Fixing Hole Distance (H) | 8.5mm |
| Max Load (kg) | 10 |
| Deflection (mm) | 2.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM4020-60 is rated to a maximum load of 10 kg with a deflection of 2 mm. These figures reflect the 60 Shore A medium-grade rubber, which provides a balanced response between isolation and load-bearing capacity.
A. At 60 Shore A, this is the medium grade in the 40mm flanged range. It offers more deflection and better isolation than the firmer 75 Shore grade, while carrying higher loads with less movement than the softer 45 Shore grade — making it the general-purpose choice for moderate-load applications.
A. The key dimensions are: A (outer diameter) 40 mm, B 20 mm, C thread M6, D 19 mm, E 29 mm, F 52 mm, G 64 mm, H 6.2 mm.
A. The FM4020-60 is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. At 40mm it is particularly appropriate for instruments, light equipment, and electronics requiring balanced vibration damping under moderate load.
A. The rubber-to-metal bonded construction allows the FM4020-60 to be loaded in shear, compression, or a combination of both, offering flexibility in how it is fitted within a machine or structure.
A. Yes. The 40mm M6 flanged mount is also available in 45 Shore A (FM4020-45) and 75 Shore A (FM4020-75). The family extends to larger geometries including FM6024, FM8027, FM10028, FM15039, and FM20044. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request.
A. Yes — stainless steel metals and oil-resistant or high-temperature rubbers, plus additional and custom sizes, are available on request.
