Product Number: RSM322-70-70

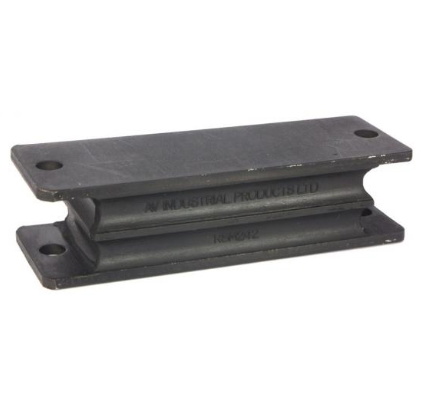

The RSM322-70-70 is a firm-grade, 70 Shore A rectangular sandwich mount rated to carry loads up to 500 kg, the highest load capacity in the RSM322 size band. Making it the right choice wherever equipment must be held firmly against shock, impact, and high static load. At 110 mm × 57 mm × 43 mm (A × B × C) with a 64 mm D dimension, 89 mm E, 11 mm F, and a 5 mm G face, this is the largest form factor in the rectangular sandwich range and is proportioned for demanding structural mounting duties rather than lightweight instrument protection. Constructed with a rubber-to-metal bonded design, the mount can be loaded in shear, compression, or a combination of both. The 70 Shore A rubber compound delivers a stiffness of 2.6 kg per mm of deflection, which means movement under load remains tightly controlled, a deliberate characteristic that prioritises positional restraint and structural protection over maximum vibration attenuation. This behaviour makes the RSM322-70-70 well suited to applications where displacement of the mounted assembly is unacceptable, complementing the mount's role in improving machinery lifespan and protecting surrounding structures. Industries where this firm-grade mount finds regular application include construction and off-highway, power generation, marine, railway and mass transit, agriculture, automotive, and military and defence. In each of these sectors, the combination of high load capacity and controlled deflection addresses the challenge of isolating heavy equipment or anchoring components subject to sustained vibration and intermittent shock loading.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | RSM242-45-45 | RSM242-60-60 | RSM284-45-45 | RSM284-60-60 | RSM322-45-45 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 127x57mm | 110x57mm | |||
A. The RSM322-70-70 is rated to a load of 500 kg, placing it at the top of the RSM322 size band's capacity range.
A. A 70 Shore A rating indicates a firm rubber compound. In practice this produces a stiffness of 2.6 kg per mm of deflection, meaning the mount limits movement tightly under load — prioritising positional control and restraint over maximum vibration attenuation.
A. The mount measures 110 mm (A) × 57 mm (B) × 43 mm (C), with a D dimension of 64 mm, E of 89 mm, F of 11 mm, and G of 5 mm.
A. Source data lists construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence as industries served by this mount family.
A. Yes — the RSM322-70-70 may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation.
A. The mount uses rubber-to-metal bonded construction, which bonds the rubber element directly to its metal faces to maintain integrity under continuous vibration and intermittent shock loading.
A. Yes. The RSM322 size band includes 45 Shore A (RSM322-45) and 60 Shore A (RSM322-60) for applications needing greater deflection and isolation at lower loads. Smaller form factors are available in the RSM284 series (RSM284-45, RSM284-60, RSM284-70) and RSM242 series (RSM242-45, RSM242-60, RSM242-70).
A. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
