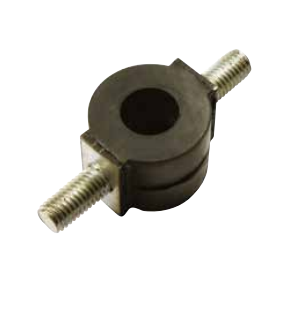

Product Number: LF1394
Variations
Measuring 17 mm across dimension A with an M4 thread, the LF1394 is a rubber-to-metal bonded low frequency mount engineered for vibration isolation of instruments, electronics and light equipment operating at lower load levels. Its compact geometry, 14 mm on both the B and C dimensions, with an E value of 10. Places it at the entry end of the low frequency mounting range, making it well suited to lightweight installations where minimising transmitted vibration is the primary requirement. The rubber-to-metal bonded construction delivers consistent performance whether the mount is loaded in shear, compression or a combination of both. Softer grades within this family provide greater deflection and more effective isolation under lower loads, which directly benefits sensitive instruments and electronics where movement control and vibration attenuation are equally important. By absorbing and dissipating vibratory energy, these mounts protect surrounding structures, extend machinery service life and improve operator comfort. Applications span a broad range of demanding industries, including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. The LF1394 is particularly well positioned for lighter-duty installations within these sectors, for example, panel-mounted instruments, electronic control units and light ancillary equipment. Where its load band and deflection characteristics align with the isolation demands of sensitive components. This mount is available alongside complementary sizes in the low frequency mounting range. For alternative thread or dimensional configurations, see also LF0912, LF1395 and LF1396.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 17 |
|---|---|
| Width / dimension B (mm) | 14 |
| Height / dimension C (mm) | 14 |
| Outer diameter D (mm) | M4 |
| Dimension E (mm) | 10 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

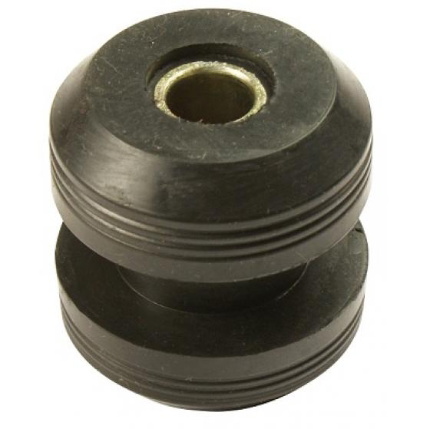

| PRODUCT NUMBER | RE1/20/8.5 | TP4850-45 | TP4850-60 | RE1/13/6.5 | TP3025-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 20mm | 20mm | 20mm | 13mm | 12.3mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The LF1394 has the following dimensions: A = 17 mm, B = 14 mm, C = 14 mm, D = M4 (thread), E = 10.
A. The LF1394 is designed for instruments, electronics and light equipment where vibration isolation of sensitive items is required. It is suited to lighter-load installations across industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. The LF1394 may be loaded in shear, compression or a combination of both, providing flexibility in how it is installed within a mounting arrangement.
A. The LF1394 uses rubber-to-metal bonded construction, which bonds the rubber element directly to the metal components to deliver consistent vibration isolation performance and structural integrity.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. Yes. Related variants include LF0912, LF1395 and LF1396, which offer alternative dimensional and thread configurations within the same low frequency mounting family.
A. We accept all major credit and debit cards, along with PayPal.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
