Product Number: LF0912
Variations

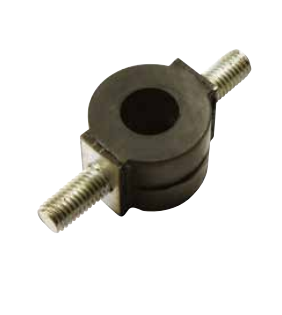

Sitting at the compact end of the low frequency mounting range, LF0912 is a 12.5 mm (dim. A) rubber-to-metal bonded anti-vibration mount with an M4 thread, purpose-built to provide vibration isolation for instruments, electronics, and light equipment operating under low-load conditions. At this scale, the mount is well suited to protecting sensitive items where minimising transmitted vibration is the primary engineering objective. The rubber-to-metal bonded construction delivers a reliable, integrated assembly capable of accepting load in shear, compression, or a combination of both. This versatility allows the mount to be orientated to suit the dynamic characteristics of the installation, giving engineers flexibility when specifying isolation solutions for compact or weight-sensitive assemblies. The softer rubber grades within this family are particularly effective at this end of the load spectrum, yielding greater deflection and correspondingly better isolation performance under lighter loads. With principal dimensions of A 12.5 mm, B 9.5 mm, C 9.4 mm, and a thread size of D M4 with E 10, LF0912 addresses installations across a broad spread of industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. By absorbing and attenuating vibration at source, the mount works to extend machinery service life, protect surrounding structures, and improve operator comfort. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for demanding environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 12.5 |
|---|---|
| Width / dimension B (mm) | 9.5 |
| Height / dimension C (mm) | 9.4 |
| Outer diameter D (mm) | M4 |
| Dimension E (mm) | 10 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TP3025-45 | TP3025-60 | TP3035-45 | TP3035-60 | RE1/13/6.5 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 12.3mm | 12.3mm | 12.3mm | 12.3mm | 13mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The LF0912 uses rubber-to-metal bonded construction, integrating the rubber element and metal hardware into a single assembly for reliable, long-service vibration isolation.
A. The mount may be loaded in shear, compression, or a combination of both, allowing it to be oriented to match the dynamic requirements of the installation.
A. The principal dimensions are: A 12.5 mm, B 9.5 mm, C 9.4 mm, thread D M4, E 10.
A. It is designed for instruments, electronics, and light equipment requiring vibration isolation under low-load conditions. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. By isolating and attenuating vibration, the mount works to improve machinery lifespan, protect surrounding structures, and improve operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Yes — the low frequency mounting range includes LF1394, LF1395, and LF1396, which offer alternative configurations and load capacities.
