Product Number: TP3025-45
Where maximum vibration isolation takes priority over load restraint, the TP3025-45 two-piece anti-vibration mount delivers. With a 45 Shore A soft rubber element and dimensions of A: 12.3 mm, B: 20.1 mm, C: 10.3 mm, D: 2.5 mm, E: 12.3 mm, F: 10.3 mm and G: 33 mm, this compact mount is purpose-built for lighter, sensitive installations, instruments, electronics and light equipment. Where attenuating lower-frequency vibration is the primary engineering requirement. The soft 45 Shore A rubber grade is the defining characteristic of this variant. At this hardness, the element yields greater deflection under load than harder grades, and that deflection is what produces the superior isolation performance at lower load levels. The rubber-to-metal bonded construction locks the element securely between its metal components without mechanical fasteners through the rubber, maintaining consistent dynamic characteristics throughout service life. Mounts of this family may be loaded in shear, compression, or a combination of both, giving the installer flexibility in orientation to suit the mounting arrangement. The TP3025-45 carries a maximum rated load of 35 kg, positioning it within the lighter end of the two-piece range. Its modest footprint suits compact assemblies where space around the mounting point is constrained. Applications span construction and off-highway plant, agricultural machinery, power generation equipment, marine installations, railway and mass transit vehicles, automotive assemblies, and military and defence platforms, wherever a sensitive or lightly loaded component must be decoupled from structure-borne vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

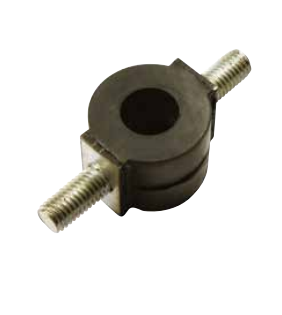

| PRODUCT NUMBER | LF0912 | RE1/13/6.5 | TP3520W10*-45 | TP3520W10*-60 | RE1/8.5/3.2-3.5 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 12.5mm | 13mm | 9mm | 9mm | 8.5mm |
| Size Range | 11-25mm | 11-25mm | Up to 10mm | Up to 10mm | Up to 10mm |
| Thread | M4 | ||||
A. The TP3025-45 has a maximum rated load of 35 kg, making it suited to lighter and compact installations where vibration isolation is the primary requirement.
A. A 45 Shore A rating places this mount at the softer end of the hardness scale. Softer grades produce greater deflection under load and deliver better vibration isolation performance, particularly at lower loads and lower frequencies — ideal for sensitive instruments, electronics, and light equipment.
A. The mount dimensions are: A 12.3 mm, B 20.1 mm, C 10.3 mm, D 2.5 mm, E 12.3 mm, F 10.3 mm, G 33 mm, with bolt thread parameters Tmax 5 and Tmin 5.
A. The TP3025-45 may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation to suit the installation.
A. The mount is suited to construction and off-highway equipment, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications — wherever a lightly loaded or sensitive component requires decoupling from structure-borne vibration.
A. Yes — the two-piece mount family includes the 60 Shore A variant (TP3025-60) in this size, and the wider range covers the TP2203, TP3035, TP3520, TP3520W10, TP4850, and TP9075 for different sizes and load requirements.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
