Product Number: TP4850-45
Variations

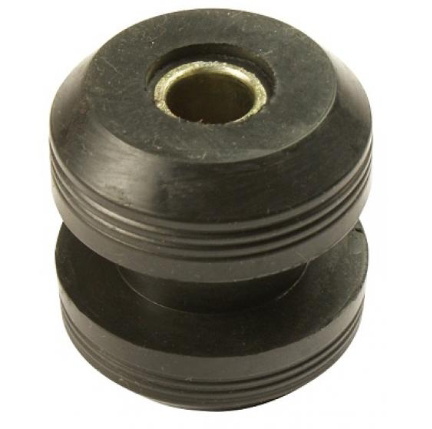

Where sensitive equipment demands the greatest possible isolation, the TP4850-45 two-piece anti-vibration mount delivers with a soft 45 Shore A rubber element bonded to a robust metal body. At 20 mm diameter and rated to a maximum load of 80 kg, this mount is positioned in the upper range of the two-piece family, suited to lighter and compact installations where attenuating lower-frequency vibration matters more than limiting movement. The rubber-to-metal bonded construction provides the structural integrity needed for reliable long-term service across demanding environments. The softer 45 Shore A rubber grade is the defining characteristic of this variant. Compared with medium and firm grades of the same geometry, the 45 Shore A element produces greater deflection under load, which is precisely what delivers superior vibration isolation for sensitive instruments, electronics, and light equipment. The mount may be loaded in shear, compression, or a combination of both, giving the installer flexibility to match the mounting configuration to the application requirement. Key dimensional data for installation planning: A 20 mm, B 31 mm, C 19 mm, D 10 mm, E 20 mm, F 13.5 mm, G 47.5 mm, R 1.5 mm, Tmax 14 mm, Tmin 12.5 mm, with a maximum load rating of 80 kg. Industries served by this mount family include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | RE1/20/8.5 | LF1394 | RE1/25/10.5 | RE1/25/8.5 | RE1/13/6.5 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 20mm | 17mm | 25mm | 25mm | 13mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Thread | M4 | ||||
A. The TP4850-45 has a maximum load rating of 80 kg. It is a 20 mm diameter two-piece mount with a soft 45 Shore A rubber element, intended for lighter and compact installations where vibration isolation is the primary requirement.
A. Softer rubber grades produce greater deflection under load, which results in better vibration isolation — particularly at lower frequencies. The 45 Shore A grade of this mount is best suited to sensitive instruments, electronics, and lighter equipment where isolation performance takes priority over restricting movement.
A. This mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented and installed to suit the application.
A. The dimensional data is as follows — A: 20 mm, B: 31 mm, C: 19 mm, D: 10 mm, E: 20 mm, F: 13.5 mm, G: 47.5 mm, R: 1.5 mm, Tmax: 14 mm, Tmin: 12.5 mm.
A. The mount family is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — a 60 Shore A variant is available (TP4850-60), along with a broader range of two-piece mountings including TP2203, TP3025, TP3035, TP3520, TP3520W10, and TP9075. Custom sizes and materials including stainless steel and oil-resistant or high-temperature rubbers are available on request.
A. Yes — the mount family is specifically described as suitable for instruments, electronics, and light equipment requiring vibration isolation. The soft 45 Shore A grade provides the greatest deflection and isolation performance within this geometry range.
