Product Number: FM150500

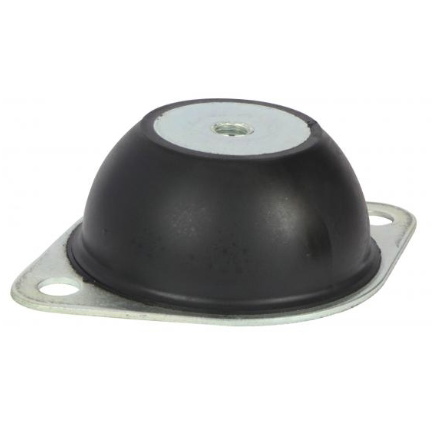

Carrying loads across a mid-range band, the FM150500 is a rubber-to-metal bonded flanged mounting sized at 116 mm overall diameter with an M12 threaded stud, engineered to deliver controlled vibration isolation for general industrial and mobile equipment. Its bonded construction integrates the rubber element directly with the metal flanged body, ensuring consistent load transfer whether the mount is working in shear, compression, or a combination of both. The mount draws on the proven characteristics of rubber-to-metal bonding to suppress transmitted vibration while protecting surrounding structures and improving operator comfort under sustained operating conditions. Dimensional references, a: 116 mm, B: 40 mm, D: 182 mm, D1: 150 mm, E1: 214 mm, E2: 154 mm, F: 4.5 mm, G: 20.2 × 12.2 mm, with slot dimensions of 8 mm across all four positions. Give design engineers the precise data needed to confirm fit within existing frames and sub-structures. The FM150500 is well suited to applications in power generation, marine installations, agricultural machinery, and construction and off-highway equipment, where mid-range load demands and reliable isolation performance must be maintained over extended service lives. Its geometry makes it equally appropriate for railway and mass transit, automotive, and military and defence platforms where flanged mounting points are standard practice. This flanged mounting belongs to a broad family covering a wide spectrum of load ratings and physical sizes. Companion variants include FM007, FM100, FM1500, FM1566, FM200, FM209, FM25, and FM400; consult each listing to match load band and dimensional envelope to your application requirement.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 116 |
|---|---|
| Width / dimension B (mm) | 40 |
| Height / dimension C (mm) | M12 |
| Outer diameter D (mm) | 182 |
| Diameter / thread d1 (mm) | 150 |
| Dimension E1 (mm) | 214 |
| Dimension E2 (mm) | 154 |
| Fixing hole / dimension F (mm) | 4.5 |
| Fixing hole spacing G (mm) | 20.2 x 12.2 |
| /1 mm | 8 |
| /2 mm | 8 |
| /3 mm | 8 |
| /4 mm | 8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM10028-45 | FM10028-60 | FM10028-75 | FM15039-45 | FM15039-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Size | 100mm | 100mm | 100mm | 150mm | 150mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | 101-200mm |
| Thread | M10 | M10 | M10 | M14 | M14 |
A. The FM150500 has an overall diameter (A) of 116 mm, a height (B) of 40 mm, an M12 threaded stud (C), a D dimension of 182 mm, a D1 of 150 mm, E1 of 214 mm, E2 of 154 mm, an F dimension of 4.5 mm, a G dimension of 20.2 × 12.2 mm, and all four slot dimensions (/1 through /4) of 8 mm each.
A. The FM150500 is designed to operate in shear, compression, or a combination of both, giving flexibility in how it is orientated within a mounting arrangement.
A. The mount is suitable for power generation, marine, agricultural machinery, construction and off-highway equipment, railway and mass transit, automotive, and military and defence applications where a flanged mounting with mid-range load capacity is required.
A. Rubber-to-metal bonding integrates the rubber element directly with the metal flanged body, providing consistent vibration isolation, improved machinery lifespan, protection for surrounding structures, and better operator comfort under sustained operating loads.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants in the flanged mounting range include FM007, FM100, FM1500, FM1566, FM200, FM209, FM25, and FM400. Each covers a different load band or dimensional envelope, so check individual listings to find the closest match for your application.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
