Product Number: FM15039-60

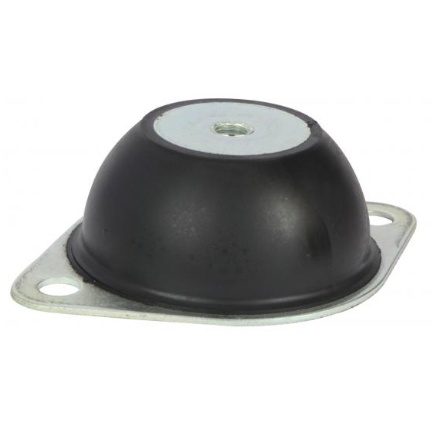

Handling loads up to 250 kg with a controlled deflection of 7 mm, the FM15039-60 is a 150 mm capped flanged anti-vibration mount in 60 Shore A rubber, a medium hardness grade that balances vibration isolation against structural support across the broad middle ground of industrial machinery mounting. Where a softer grade prioritises movement and a firmer grade prioritises restraint, this mount delivers both in equal measure, making it well suited to equipment that demands consistent damping without sacrificing positional stability under sustained or variable load. The FM15039-60 uses rubber-to-metal bonded construction throughout, uniting a flanged steel base with a capped upper face to protect the thread and mounting hardware from contamination in service. The M14 threaded stud and capped design allow secure, repeatable fitment in applications where the mount may be exposed to workshop debris, moisture, or aggressive environments. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for demanding service conditions. With principal dimensions of 150 mm outer diameter, 39 mm height, and a 34 mm cap diameter across a 115 mm bolt-pitch flange (F: 182 mm; G: 214 mm; H: 12.0 mm), this mount sits in the upper range of the capped flanged family and is appropriate for heavier machinery subject to moderate shock or dynamic loading. The medium Shore A rating means it performs reliably when loaded in compression, shear, or a combination of both, protecting surrounding structures, extending machinery lifespan, and improving operator comfort.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM15039-45 | FM15039-75 | FM2001350 | FM150500 | FM10028-45 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Size | 150mm | 150mm | 159mm | 116mm | 100mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 51-100mm |
| Thread | M14 | M14 | M16 | M12 | M10 |
A. The FM15039-60 is rated to a maximum load of 250 kg with a deflection of 7 mm.
A. At 60 Shore A, this is a medium-hardness grade that balances vibration isolation against load-bearing support. It provides less deflection than a softer 45 Shore A grade but greater isolation than a firmer 75 Shore A grade, making it well suited to the broad middle ground of machinery mounting where both consistent damping and positional stability are required.
A. The mount has an outer diameter (A) of 150 mm, a height (B) of 39 mm, an M14 threaded stud (C), a cap diameter (D) of 34 mm, a bolt-pitch flange (E) of 115 mm, F of 182 mm, G of 214 mm, and a flange thickness (H) of 12.0 mm.
A. The FM15039-60 is suitable for construction and off-highway equipment, agricultural machinery, power generation plant, marine installations, railway and mass transit, automotive applications, and military and defence — anywhere heavier equipment benefits from balanced vibration damping and structural support.
A. Yes. The FM15039-60 may be loaded in compression, shear, or a combination of both, giving flexibility in how it is oriented within a mounting arrangement.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for applications requiring enhanced chemical or thermal resistance.
A. Yes. The 150 mm × 39 mm geometry is also available in 45 Shore A (FM15039-45) for lower-load isolation duty and 75 Shore A (FM15039-75) for high-load or shock-restraint applications. Additional sizes in the capped flanged family include the FM10028, FM20044, FM4020, FM6024, and FM8027.
