Product Number: FM2001350
Built for demanding load-bearing applications, this 159 mm flanged anti-vibration mount (FM2001350) delivers rubber-to-metal bonded construction across a generous dimensional envelope, outer diameter 159 mm, flange-to-flange span E1 280 mm, and M16 threaded stud. Positioning it firmly at the upper end of the flanged mounting range. Where smaller-diameter siblings address lighter instrument and electronics duties, this mount is engineered for heavier machinery, structures and equipment requiring controlled vibration isolation at elevated loads. The rubber-to-metal bonded construction provides reliable shear, compression and combined-loading capability without mechanical fastener interfaces between isolator and metal faces. This bonded arrangement is well established in isolation applications where vibration transmission must be reduced to protect surrounding structures, extend machinery service life and improve operator comfort across sustained duty cycles. With a B dimension of 40 mm, a D (base flange) of 240 mm, D1 of 200 mm, E2 of 204 mm, F of 5.5 mm and a slot dimension G of 24.2 x 14.2 mm, the mount integrates into fabricated frames, heavy plant and mobile equipment where bolt-pattern flexibility is required. Mounting hole depths are 8 mm across all four positions (/1–/4). Industries served by this family include construction and off-highway, power generation, marine, agriculture, railway and mass transit, automotive, and military and defence applications. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for specialised environments. This mount is part of a comprehensive flanged mounting range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 159 |
|---|---|
| Width / dimension B (mm) | 40 |
| Height / dimension C (mm) | M16 |
| Outer diameter D (mm) | 240 |
| Diameter / thread d1 (mm) | 200 |
| Dimension E1 (mm) | 280 |
| Dimension E2 (mm) | 204 |
| Fixing hole / dimension F (mm) | 5.5 |
| Fixing hole spacing G (mm) | 24.2 x 14.2 |
| /1 mm | 8 |
| /2 mm | 8 |
| /3 mm | 8 |
| /4 mm | 8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

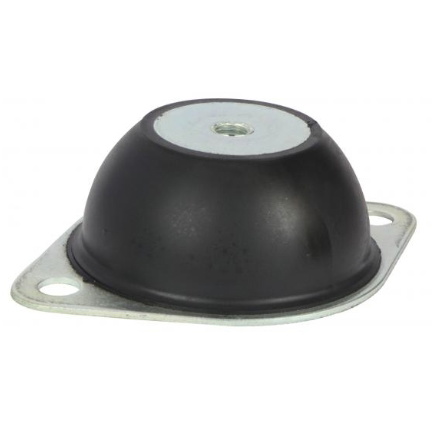

| PRODUCT NUMBER | FM15039-45 | FM15039-60 | FM15039-75 | FM20044-45 | FM20044-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Size | 150mm | 150mm | 150mm | 200mm | 200mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M14 | M14 | M14 | M18 | M18 |
A. The mount has an outer diameter (A) of 159 mm, a height (B) of 40 mm, an M16 threaded stud (C), a base flange diameter (D) of 240 mm, a D1 dimension of 200 mm, an E1 span of 280 mm, an E2 dimension of 204 mm, an F value of 5.5 mm, and a slot dimension (G) of 24.2 x 14.2 mm. All four mounting hole depths (/1 through /4) are 8 mm.
A. The mount uses an M16 threaded stud (dimension C), suitable for integration into fabricated frames and heavy equipment mounting arrangements.
A. The mount may be loaded in shear, compression, or a combination of both, making it adaptable to varied installation geometries in machinery and structural applications.
A. This mount family serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Related flanged mount variants include FM007, FM100, FM1500, FM1566, FM200, FM209, FM25 and FM400, covering a range of sizes and load configurations.
