Product Number: FM209-45

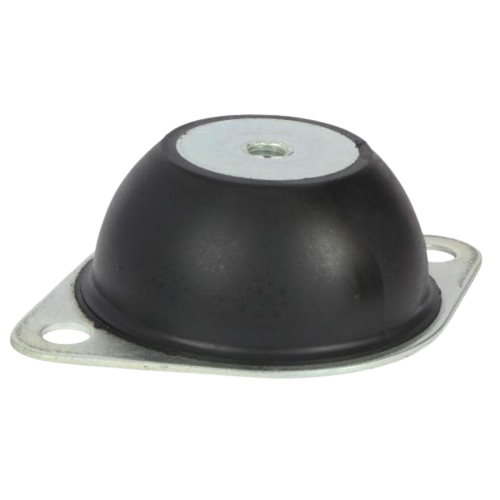

The FM209-45 is a flanged rubber mounting rated to 40 kg. Providing high vertical static deflection under relatively low load - the property that gives the flanged range its high levels of vibration isolation and shock absorption.
Economical and easy to install, it suits pumps, fans, compressors, vibratory screens and shock packaging. Dimensionally the head measures 31 mm across and 21.5 mm high, with two M8mm fixing holes at 60mm centres and an 77 mm free length. Synthetic rubber compounds resistant to oil and fuel, and stainless steel metal parts, are available across the range. AV Industrial Products manufactures and supplies anti-vibration mounts and rubber engineering components for industrial applications across the UK.
Neighbouring FM sizes cover lighter and heavier duties on the same principle.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

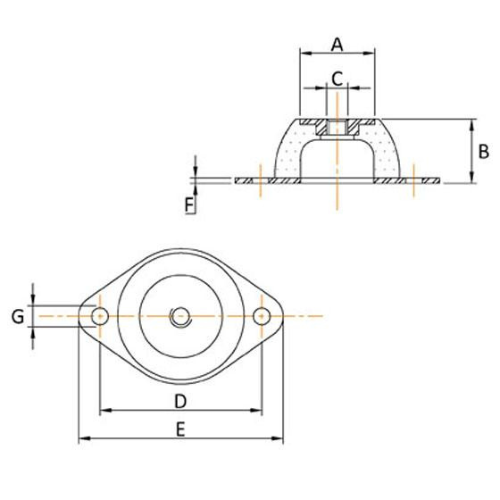

| Fixing Holes | 2 |
|---|---|
| Head Dimensions(A) | 31mm |
| Height (B) | 21.5mm |
| Fixing Hole Dimensions (C) | M8mm |
| Center Distance Dimensions (D) | 60mm |
| Free Length (E) | 77mm |
| Mounting Base Thickness (F) | 3mm |
| Bore Dimensions (G) | 9.2mm |
| Max Load (Kg) | 40 |
| Deflection (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. Fit is by footprint - two M8mm fixing holes at 60mm centres beneath a 31 mm head, 77 mm free length. Compare with your equipment, search PartsForMachines by the AV part number, or WhatsApp our team.
A. 40 kg maximum for this grade.
A. The range provides high vertical static deflection under relatively low load, achieving high levels of vibration isolation and shock absorption, and installs easily.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
