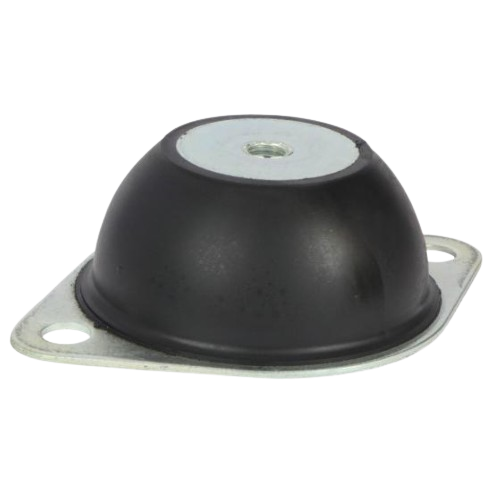

Product Number: FM1566-60
Balanced across isolation and structural support, the FM1566-60 is a flanged anti-vibration mount with an M6 thread and 60 Shore A medium-grade rubber, designed for the broad middle ground of machinery mounting where both vibration control and adequate load-bearing are required. With a maximum load rating of 20.0 kg and a deflection of 1.4 mm, this mount suits lighter compact installations that need reliable damping without excessive movement under load. Constructed with rubber-to-metal bonding, the FM1566-60 delivers consistent performance under shear, compression, or combined loading. The medium hardness grade strikes a practical balance: softer than firm-grade alternatives to allow meaningful vibration attenuation, yet firm enough to maintain positional stability in applications where controlled deflection matters. Key dimensions are a 26.5 mm A dimension, 11.6 mm B, 50 mm D, 60 mm E, 1.74 mm F, and 6 mm G, with two fixing holes on the M6 pattern. This mount is suited to instruments, electronics, and light equipment across many sectors including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. By reducing transmitted vibration, the flanged mount helps improve machinery lifespan, protects surrounding structures, and contributes to improved operator comfort. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for demanding environments. This mount is part of a wider flanged mounting range. Alternative Shore grades of this geometry are available as FM1566-40 (softer, greater deflection) and FM1566-75 (firmer, higher load).
Providing high levels of vertical static deflection under relatively low load, the Flanged Mountings achieve high levels of vibration isolation and shock absorption. An economical and easy to install anti-vibration, they are suitable for a variety of applications:
The High Deflection Mounts are also available in synthetic rubber compounds, which are resistant to attack from oil and fuel, as well as stainless steel metal parts.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

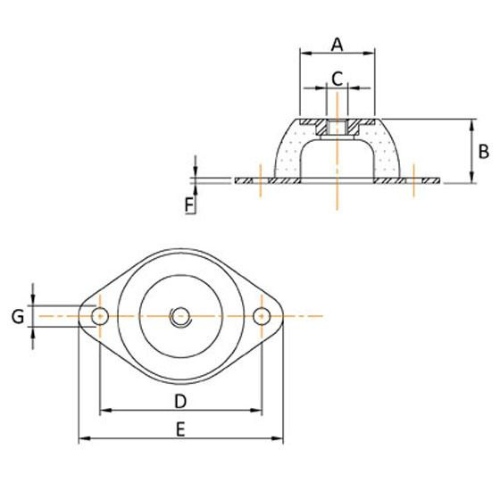

| Fixing Holes | 2 |
|---|---|
| Head Dimensions(A) | 26.5mm |
| Height (B) | 11.6mm |
| Fixing Hole Dimensions (C) | M6mm |
| Center Distance Dimensions (D) | 50mm |
| Free Length (E) | 60mm |
| Mounting Base Thickness (F) | 1.74mm |
| Bore Dimensions (G) | 6mm |
| Max Load (Kg) | 20 |
| Deflection (mm) | 1.35 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM1566-60 is rated to a maximum load of 20.0 kg with a deflection of 1.4 mm at that load.
A. A 60 Shore A rating places this mount in the medium range. It provides a practical balance between vibration isolation and load-bearing stability — offering more deflection and isolation than a firmer 75 Shore grade, whilst carrying more load with less movement than a softer 40 Shore grade.
A. The FM1566-60 has the following dimensions: A = 26.5 mm, B = 11.6 mm, C = M6 thread, D = 50 mm, E = 60 mm, F = 1.74 mm, G = 6 mm, with 2 fixing holes.
A. This mount is designed for instruments, electronics, and light equipment. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation.
A. Yes. The same flanged mount geometry is available as FM1566-40 (softer grade) and FM1566-75 (firmer grade). Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are also available on request for specialist applications.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
