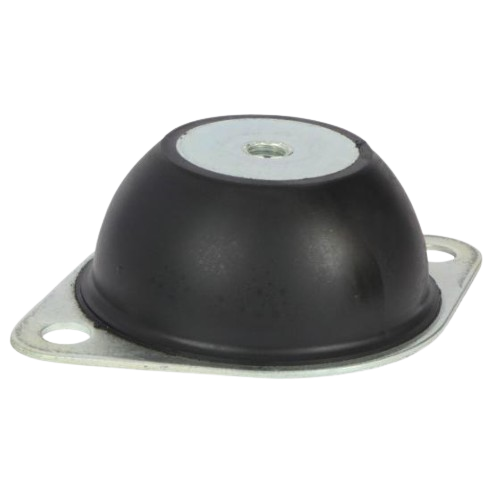

Product Number: FM209-60

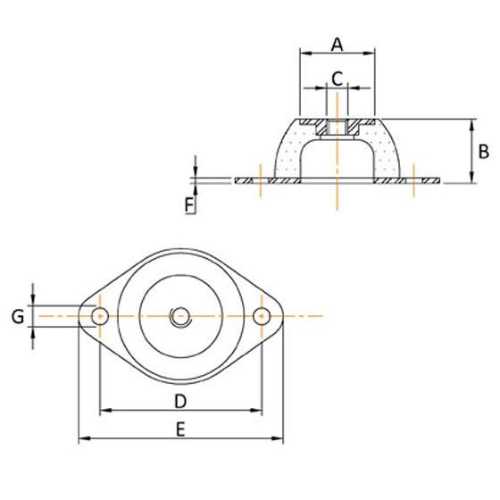

Sitting at the mid-point of the FM209 flanged mounting range, this 60 Shore A rubber-to-metal bonded mount balances vibration isolation with structural support, making it suited to compact or lighter installations where neither extreme softness nor high stiffness is required. With a maximum load rating of 76.0 kg and a controlled deflection of 3.0 mm, the FM209-60 delivers the measured movement and damping characteristics that the mid-range of this family is built around. The two-hole flanged fixing configuration accepts M8 or M10 fasteners (dimension C), giving installation flexibility across varied equipment frames. Key dimensional references are: A 31 mm, B 21.5 mm, D 60 mm, E 77 mm, F 3 mm, and G 9.2 mm. The rubber-to-metal bonded construction allows loading in shear, compression, or a combination of both, providing a stable interface without mechanical fasteners between the rubber element and metal components. Drawing on the instrument and general mounting family, the FM209-60 is appropriate for vibration isolation in sensitive instruments, electronics, and light equipment across a broad spread of industries including agriculture, power generation, marine, automotive, and construction and off-highway applications. At 60 Shore A, this grade sits between the greater deflection of softer grades and the higher load capacity of firmer grades, offering the general-purpose middle ground for machinery that does not demand the extremes of either end of the range. The FM209 range is also available in 40 Shore A (FM209-40) and 75 Shore A (FM209-75).
Providing high levels of vertical static deflection under relatively low load, the Flanged Mountings achieve high levels of vibration isolation and shock absorption. An economical and easy to install anti-vibration, they are suitable for a variety of applications:
The High Deflection Mounts are also available in synthetic rubber compounds, which are resistant to attack from oil and fuel, as well as stainless steel metal parts.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Fixing Holes | 2 |
|---|---|
| Head Dimensions(A) | 31mm |
| Height (B) | 21.5mm |
| Fixing Hole Dimensions (C) | M10mm |
| Center Distance Dimensions (D) | 60mm |
| Free Length (E) | 77mm |
| Mounting Base Thickness (F) | 3mm |
| Bore Dimensions (G) | 9.2mm |
| Max Load (Kg) | 76 |
| Deflection (mm) | 2.8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM209-60 is rated to a maximum load of 76.0 kg with a deflection of 3.0 mm, placing it in the mid-range of the FM209 family for balanced isolation and load support.
A. The principal dimensions are: A 31 mm, B 21.5 mm, D 60 mm, E 77 mm, F 3 mm, G 9.2 mm, with two fixing holes accepting M8 or M10 fasteners (dimension C).
A. The two fixing holes accept either M8 or M10 fasteners, as indicated by dimension C in the specification.
A. At 60 Shore A, this mid-grade mount is suited to lighter, compact, or moderately loaded installations including instruments, electronics, and light equipment across agriculture, power generation, marine, automotive, and construction and off-highway sectors.
A. The 60 Shore A grade offers a balance between isolation and load support. Softer grades such as the FM209-40 provide greater deflection and better isolation at lower loads, while the FM209-75 carries higher loads with less movement. The 60 Shore A sits at the general-purpose mid-point.
A. Yes — the rubber-to-metal bonded construction allows the FM209-60 to be loaded in shear, compression, or a combination of both, depending on the installation requirements.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
