Product Number: FM50-60

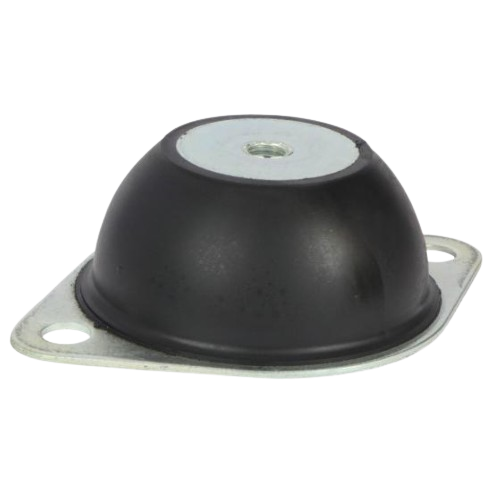

Compact and versatile, the FM50-60 is a flanged anti-vibration mount rated to a maximum load of 69.0 kg with a 5.0 mm deflection, engineered to balance vibration isolation and structural support across a broad range of lighter, sensitive installations. Its 60 Shore A medium-grade rubber sits at the mid-point of the FM50 family, making it well suited to applications where neither maximum compliance nor maximum rigidity is the priority, instead offering a reliable, balanced performance across both demands. Constructed using rubber-to-metal bonded technology, the FM50-60 can be loaded in shear, compression or a combination of both. The two fixing holes accept M10 fasteners, with principal dimensions of 45 mm (A), 35 mm (B), 92 mm (D) and 114 mm (E). Flange thickness (F) is 2 mm, and thread depth (G) is 10 mm. This geometry is particularly appropriate for instruments, electronics and light equipment where controlled, moderate deflection is needed without excessive movement under load. Across the industries it serves, including power generation, marine, agriculture, construction and off-highway, railway and mass transit, automotive, and military and defence. The FM50-60 contributes to improved machinery lifespan, protection of surrounding structures and enhanced operator comfort. The balance of isolation and support it provides is most effective in compact or sensitive installations carrying lower to mid-range loads, where a softer mount would give too much movement and a firmer grade would sacrifice isolation.
Providing high levels of vertical static deflection under relatively low load, the Flanged Mountings achieve high levels of vibration isolation and shock absorption. An economical and easy to install anti-vibration, they are suitable for a variety of applications:The High Deflection Mounts are also available in synthetic rubber compounds, which are resistant to attack from oil and fuel, as well as stainless steel metal parts.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Top Diameter (A) | 45mm |
|---|---|
| Overall Height (B) | 35mm |
| Thread Size (C) | M10 |
| Base Circular Diameter (D) | 92 |
| Overall Mounting Width (E) | 114mm |
| Base Thickness (F) | 2mm |
| Center Mounting Distance (G) | 10mm |
| Fixing Holes | 2 |
| Max Load | 69Kg |
| Deflection | 4.80mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM50-60 is rated to a maximum load of 69.0 kg with a deflection of 5.0 mm.
A. The mount uses M10 fixings (dimension C) and has 2 fixing holes.
A. The principal dimensions are: A = 45 mm, B = 35 mm, D = 92 mm, E = 114 mm, F (flange thickness) = 2 mm, G (thread depth) = 10 mm.
A. The medium 60 Shore A grade is designed for lighter, compact or sensitive installations where a balance of vibration isolation and structural support is required. It is well suited to instruments, electronics and light equipment carrying lower to mid-range loads.
A. The mount can be loaded in shear, compression or a combination of both.
A. The mount is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — the FM50 range includes a 40 Shore A softer grade (FM50-40), which provides greater deflection for lower loads, and a 75 Shore A firmer grade (FM50-75) for higher-load applications.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
