Product Number: FM200-60

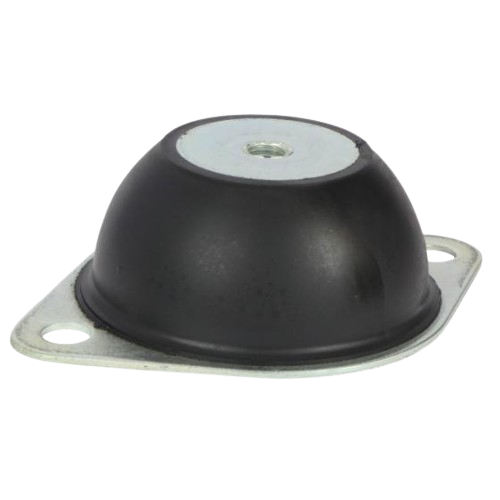

Engineered for mainstream general-machinery mounting at moderate loads, the FM200-60 is a rubber-to-metal bonded flanged mount rated to a maximum load of 220 kg with a controlled deflection of 10.0 mm, figures that position this 60 Shore A medium-grade unit squarely at the practical centre of the FM200 range. Where softer grades prioritise isolation for lighter, more sensitive equipment and firmer grades resist higher shock loads, the 60 Shore A hardness delivers the balanced performance that the broad middle ground demands: sufficient compliance to absorb and attenuate vibration, combined with the load-carrying capacity to support substantial machinery without excessive movement. The mount features rubber-to-metal bonded construction, which permanently unites the rubber element to its flanged metalwork to resist delamination in service. Two fixing holes and an M10 thread provide straightforward installation, while the flanged form distributes clamping load evenly across the mounting face. By decoupling machine vibration from supporting structures, the FM200-60 contributes to extended machinery lifespan, reduced noise transmission, and improved operator comfort across demanding duty cycles. With overall dimensions of 124 mm × 151 mm (D × E), a flange face dimension of 58 mm (A), a base dimension of 45 mm (B), flange thickness of 3 mm (F), and a standoff height of 11.5 mm (G), the FM200-60 suits installations in power generation, marine, agricultural, railway and mass transit, construction and off-highway, automotive, and military and defence applications where a dependable, mid-range vibration control solution is required.
Providing high levels of vertical static deflection under relatively low load, the Flanged Mountings achieve high levels of vibration isolation and shock absorption. An economical and easy to install anti-vibration, they are suitable for a variety of applications:The High Deflection Mounts are also available in synthetic rubber compounds, which are resistant to attack from oil and fuel, as well as stainless steel metal parts.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Fixing Holes | 2 |
|---|---|
| Head Dimensions(A) | 58mm |
| Height (B) | 45mm |
| Fixing Hole Dimensions (C) | M10mm |
| Center Distance Dimensions (D) | 124mm |
| Free Length (E) | 151mm |
| Mounting Base Thickness (F) | 3mm |
| Bore Dimensions (G) | 11.5mm |
| Max Load (Kg) | 220 |
| Deflection (mm) | 9 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM200-60 is rated to a maximum load of 220 kg with a deflection of 10.0 mm at that load.
A. The rubber element is 60 Shore A, which is the medium grade in the FM200 series. At this hardness, the mount balances vibration isolation with load-carrying capacity, making it suited to general-purpose machinery mounting at moderate loads where neither extreme compliance nor maximum stiffness is required.
A. A (mm): 58 · B (mm): 45 · C: M10 thread · D (mm): 124 · E (mm): 151 · F (mm): 3 · G (mm): 11.5 · Fixing Holes: 2.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation.
A. The FM200-60 is suited to power generation, marine, agricultural, construction and off-highway, railway and mass transit, automotive, and military and defence applications where reliable mid-range vibration control at moderate loads is required.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. The FM200 flanged mount is also available in 40 Shore A soft grade (FM200-40) and 75 Shore A firm grade (FM200-75). Related anti-vibration mounts include FM007, FM100, FM1500, FM1566, FM209, and FM25.
