Product Number: ESL25/400
Variations
Carrying a maximum load of 400 kg with 25 mm rated deflection, the ESL25/400 is an enclosed spring mounting designed for mainstream general-machinery applications where low-frequency isolation at moderate-to-substantial loads is the primary requirement. At 180 mm across (dimension A) with an M16 thread, this upper-range unit within the ESL25 series delivers the low natural frequency characteristics needed to protect surrounding structures, extend machinery service life, and improve operator comfort in demanding industrial environments. The rubber-to-metal bonded construction allows the mount to accept loading in shear, compression, or a combination of the two, giving installation engineers flexibility in how the unit is oriented and integrated into a machine base or skid. Enclosed spring geometry maintains controlled deflection within normal working conditions, targeting a maximum of approximately 20 mm deflection under load. For applications where higher deflection capacity is required, the ESL-HD enclosed heavy-duty variant accommodates up to 40 mm deflection. The ESL25/400 is well suited to power generation sets, agricultural equipment, construction and off-highway plant, marine installations, railway and mass transit systems, and automotive and defence machinery, wherever a substantial, stable mounting footprint and reliable vibration attenuation at moderate loads are called for. Key dimensions are: A 180 mm, B 127 mm, C 130–150 mm, D 111 mm, E 95 mm, F 13.5 mm, thread G M16. For specialist environments, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

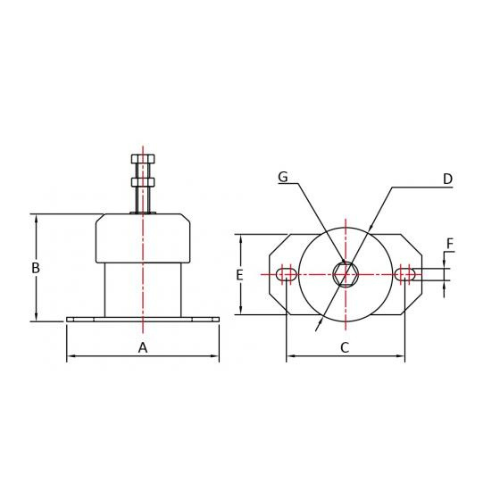

| Base Width (A) | 180mm |
|---|---|
| Overall Height (B) | 127mm |
| Rubber Body Dimension (C) | 130-150mm |
| Center Hole Dimension (D) | 111mm |
| Hole Center Distance (E) | 95mm |
| Mounting Plate Thickness (F) | 13.5mm |
| Thread Size (G) | M16 |
|
Maximum Load(kg): 400mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESL25/400 is rated to a maximum load of 400 kg with a deflection of 25 mm.
A. Dimensions are: A 180 mm, B 127 mm, C 130–150 mm, D 111 mm, E 95 mm, F 13.5 mm, with an M16 thread (dimension G).
A. The rubber-to-metal bonded construction allows loading in shear, compression, or a combination of both, giving flexibility in installation orientation.
A. The ESL25/400 is suited to power generation, agricultural equipment, construction and off-highway plant, marine, railway and mass transit, automotive, and military and defence applications where low-frequency vibration isolation at moderate-to-substantial loads is required.
A. For normal working conditions the mount is designed to a maximum of approximately 20 mm deflection. Where greater deflection capacity is needed, the ESL-HD variant accommodates up to 40 mm.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The ESL25 series includes variants rated from ESL25/100 through to ESL25/1400, covering a wide range of load requirements. Related families include the ESL, ESL-HD, ESM, and ESS series.
