Product Number: ESL25/1400
Variations
Rated to a maximum load of 1400 kg with 25 mm deflection, the ESL25/1400 is the largest mount in the ESL25 range, an enclosed spring mounting engineered to deliver low-frequency vibration isolation under heavy and shock-duty operating conditions. With an overall diameter of 180 mm and M16 fixing thread, this mount is sized and specified for machinery and plant where high deflection with low natural frequency is the governing requirement. Rubber-to-metal bonded construction gives the ESL25/1400 its structural integrity across demanding service environments. The enclosed spring design protects the spring element from contamination and mechanical damage, and the mount accepts loading in shear, compression, or a combination of both, providing flexibility in installation orientation. At this end of the range, the mount is suited to heavy static loads and applications where shock forces or high dynamic inputs must be absorbed without transmitting damaging vibration to supporting structures or adjacent equipment. The ESL25/1400 is applied across a broad spread of heavy-duty industries including power generation, construction and off-highway equipment, marine installations, agricultural machinery, railway and mass transit, and military and defence platforms. Dimension references: A 180 mm, B 127 mm, C 130–150 mm, D 111 mm, E 95 mm, F 13.5 mm, thread G M16, maximum load 1400 kg, deflection 25 mm. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request. This mount is part of a comprehensive enclosed and open spring mounting programme.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

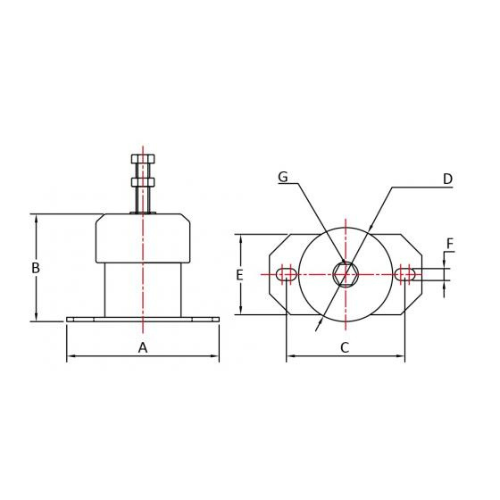

| Base Width (A) | 180mm |
|---|---|
| Overall Height (B) | 127mm |
| Rubber Body Dimension (C) | 130-150mm |
| Center Hole Dimension (D) | 111mm |
| Hole Center Distance (E) | 95mm |
| Mounting Plate Thickness (F) | 13.5mm |
| Thread Size (G) | M16 |
|
Maximum Load(kg): 1400mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESL25/1400 is rated to a maximum load of 1400 kg with a deflection of 25 mm.
A. The mount has an overall diameter (A) of 180 mm, dimension B of 127 mm, height C of 130–150 mm, D of 111 mm, E of 95 mm, F of 13.5 mm, and an M16 fixing thread (G).
A. The mount is suited to heavy-duty applications across power generation, construction and off-highway, marine, agricultural machinery, railway and mass transit, and military and defence sectors where high deflection and low natural frequency isolation are required.
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility in installation orientation.
A. The enclosed construction protects the spring element from contamination and mechanical damage, making it suitable for demanding industrial and off-highway environments.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Related variants include the standard enclosed spring range (ESL), heavy-duty enclosed variant (ESL-HD), medium mounts (ESM), short mounts (ESS), and additional ESL25 load ratings: ESL25/100, ESL25/200, ESL25/1000, and ESL25/1200.
