Product Number: ESL25/800

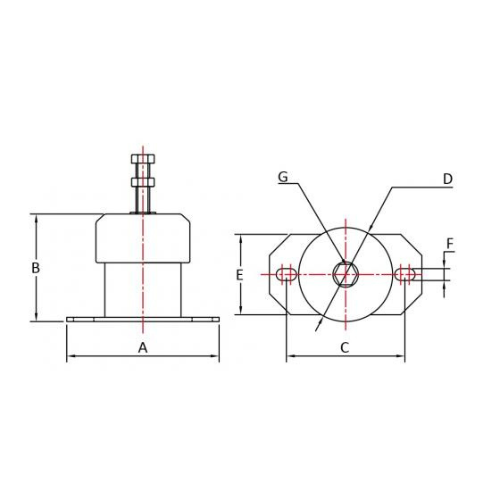

Rated to 800 kg with a 25 mm deflection travel, the ESL25/800 enclosed spring mounting is the heaviest-duty member of the ESL25 series, engineered for plant and equipment operating under sustained high load or significant shock input where low natural frequency isolation is the priority. The 180 mm footprint and M16 thread (dimension G) provide the structural bearing area and fixing size demanded by heavy machinery installations, while the rubber-to-metal bonded construction combines the restoring force of the internal spring with the damping contribution of the rubber element. The enclosed housing protects the spring and rubber element from contamination in demanding site environments. Rubber-to-metal bonded construction ensures secure load transfer between the spring assembly and the mounting interfaces. The mount may be loaded in compression, shear, or a combination of both, a flexibility that suits complex machinery base arrangements. Overall dimensions are: A 180 mm, B 127 mm, C 130–150 mm, D 111 mm, E 95 mm, F 13.5 mm. Applications suited to this size span power generation sets, heavy construction and off-highway equipment, agricultural machinery, marine engine beds, and railway and mass transit installations, environments where protecting surrounding structures and extending machinery service life are engineering requirements rather than preferences. Military and defence applications are also recognised uses within the family. The ESL25/800 sits at the top of the ESL25 deflection-band family. Lighter-load variants include ESL25/100 and ESL25/1000 (see SKU ESL25/100 and ESL25/1000).
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Width (A) | 180mm |
|---|---|
| Overall Height (B) | 127mm |
| Rubber Body Dimension (C) | 130-150mm |
| Center Hole Dimension (D) | 111mm |
| Hole Center Distance (E) | 95mm |
| Mounting Plate Thickness (F) | 13.5mm |
| Thread Size (G) | M16 |
|
Maximum Load(kg): 800mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESL25/800 is rated to a maximum load of 800 kg and provides 25 mm of deflection travel.
A. The principal dimensions are: A 180 mm, B 127 mm, C 130–150 mm, D 111 mm, E 95 mm, F 13.5 mm, with an M16 threaded fixing (G).
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility for varied machinery base configurations.
A. The mount is suited to power generation, heavy construction and off-highway equipment, agricultural machinery, marine engine beds, railway and mass transit systems, and military and defence applications.
A. The enclosed housing protects the internal spring and rubber element from site contamination, making it appropriate for demanding industrial environments where an open mount would be exposed to debris or moisture.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related families include the standard open range (ESL), heavy-deflection variant (ESL-HD), medium-deflection (ESM), and stiff-deflection (ESS) series, as well as other ESL25-series sizes including ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400.
