The TB50 is a 49 mm outer diameter T-Bush rated to a radial load capacity of 200 kg, engineered as a rubber-to-metal bonded inner-outer-sleeve bush for demanding dynamic load applications. At this load rating it sits in the lower portion of the T-Bush range, making it well suited to applications where controlled deflection, at 1.6 kg per mm. Is as important as outright load bearing. The rubber-to-metal bonded construction delivers high durability under repeated dynamic loading and is designed for a prolonged service life with no lubrication and no routine maintenance required. The bush carries principal dimensions of 49 mm outer diameter (A), 35 mm length (B), 13 mm inner bore (C), 34 mm (D) and 13 mm (F), and may be loaded in shear, compression, or a combination of both. This dimensional and load profile makes it a practical choice for pivot bearings, mechanical linkages, and cab mounts across construction and off-highway equipment, as well as agricultural and power generation machinery where mounting flexibility and operator comfort are priorities. As part of the wider Inner-Outer-Sleeve bush family, the TB50 protects surrounding structures, improves machinery lifespan, and reduces vibration transmission to improve operator comfort. Softer rubber grades within the family provide greater deflection and better isolation under lighter loads, while harder grades carry higher loads with reduced movement, custom stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for specialist environments. The T-Bush range extends across multiple sizes and load ratings.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 49 |
|---|---|
| Width / dimension B (mm) | 35 |
| Height / dimension C (mm) | 13 |
| Outer diameter D (mm) | 34 |
| Fixing hole / dimension F (mm) | 13 |
| Max load (kg) | 200 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

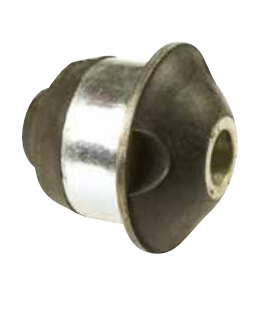

| PRODUCT NUMBER | FB02-45 | FB02-60 | FB02-75 | IOS50806575 | TB75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 48mm | 48mm | 48mm | 50mm | 50.8mm |
| Deflection | 2.16 | ||||
| Overall Height | 50.8mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 51-100mm |
A. The TB50 has an outer diameter (A) of 49 mm, a length (B) of 35 mm, an inner bore (C) of 13 mm, dimension D of 34 mm, and dimension F of 13 mm.
A. The TB50 is rated to a radial load capacity of 200 kg with a deflection rate of 1.6 kg per mm.
A. The TB50 is suited to pivot bearings, mechanical linkages, cab mounts, and engine mounts across construction, off-highway, agricultural, power generation, marine, railway, and automotive industries.
A. No. The rubber-to-metal bonded construction means the TB50 requires no lubrication and is maintenance free.
A. The TB50 may be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include TB12, TB25, TB45, TB60, TB65 and TB75, as well as TBCBA20 and TBCBA24 for alternative configuration requirements.
