Product Number: FB02-60
Variations

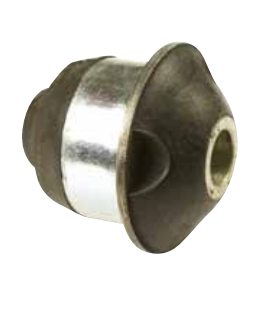

Compact in footprint yet capable of handling loads up to 85 kg, the FB02-60 is a 48 mm flanged rubber-to-metal bonded bush rated at 60 Shore A, a medium hardness that positions it squarely in the broad middle ground of anti-vibration mounting. It is well suited to lighter, compact or sensitive installations where a balance of deflection compliance and structural support is required, making it the appropriate choice across the lower-to-mid load range within the FB02 family. The rubber element is bonded between inner and outer metal sleeves, providing high durability under dynamic loads and a service life that benefits from the inherent resilience of the bonded construction. No lubrication is required and the bush is maintenance free throughout its service life. At 60 Shore A, the medium grade delivers measured deflection, greater than the firm 75 Shore A variant yet with more load resistance than the softer 45 Shore A. Giving engineers a predictable, balanced response under shear, compression, or combined loading conditions. Dimensionally, the FB02-60 is defined by an outer diameter (A) of 48 mm, flange diameter (B) of 51 mm, overall length (C) of 24 mm, bore (D) of 18 mm, inner sleeve length (E) of 12.5 mm, flange thickness (F) of 38 mm, and a fixing dimension (G) of 8 mm.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB50 | IOS1284 | IOS50806575 | TBCBA20 | TB75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 49mm | 44.45mm | 50mm | 50.8mm | 50.8mm |
| Deflection | 1.6 | 2.5 | 2.16 | ||
| Overall Height | 50.8mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 51-100mm |
A. The FB02-60 is rated to a maximum load of 85 kg. This places it in the lighter end of the FB02 range and makes it suited to compact or sensitive installations where lower loads are anticipated.
A. The FB02-60 has an outer diameter (A) of 48 mm, a flange diameter (B) of 51 mm, an overall length (C) of 24 mm, a bore (D) of 18 mm, an inner sleeve length (E) of 12.5 mm, a flange thickness (F) of 38 mm, and a fixing dimension (G) of 8 mm.
A. At 60 Shore A, the FB02-60 is a medium-grade bush that offers a balance between deflection and load support. It provides more load resistance than a softer 45 Shore A variant whilst allowing more compliance than a firmer 75 Shore A grade, making it suitable for general-purpose mounting across a wide range of machinery types.
A. The FB02-60 is suited to pivot bearings, mechanical linkages, and cab mounts, as well as use in construction and off-highway equipment, agricultural machinery, marine installations, power generation plant, railway and mass transit, and automotive applications.
A. No. The rubber-to-metal bonded construction requires no lubrication and is maintenance free throughout its service life.
A. Yes. The FB02 range is also available in 45 Shore A (FB02-45) for greater deflection and better isolation at lower loads, and 75 Shore A (FB02-75) for higher load capacity with less movement. Related flanged bush families — FB00, FB10, FB20, FB21, FB40, and FB41 — cover alternative dimensional envelopes.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
