Product Number: IOS38648088
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS0989 | 28.57 | 57.15 | 85.73 | 88.9 |
| IOS30606068 | 30 | 60 | 60 | 68 |
| IOS40624042 | 40 | 62 | 40 | 42 |
| IOS36626571 | 36 | 62 | 65 | 71 |
| IOS30637266 | 30 | 63 | 72 | 66 |
| IOS30656070 | 30 | 65 | 60 | 70 |
| IOS40658088 | 40 | 65 | 80 | 88 |
| IOS35655060 | 35 | 65 | 50 | 60 |
| IOS407112115 | 40 | 70 | 112 | 115 |
| IOS1284-70 | 44.45 | 76.2 | 76.2 | 82.55 |

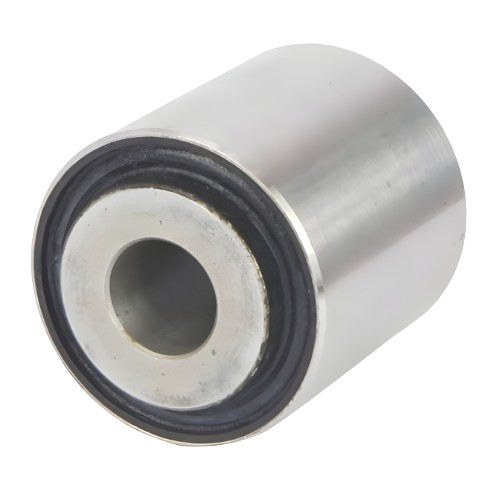

Occupying the largest position in the IOS range, this Inner-Outer-Sleeve Bush (IOS38648088) presents dimensions of 38 mm inner diameter (A), 64 mm outer sleeve diameter (B), 80 mm (C) and 88 mm (D), making it well suited to mainstream general-machinery mounting at moderate-to-substantial dynamic loads. Its rubber-to-metal bonded construction, rubber vulcanised between an inner and an outer metal sleeve. Is engineered to deliver high durability under sustained dynamic loading and a prolonged service life without any requirement for lubrication or scheduled maintenance. The bonded rubber element operates effectively whether the mount is loaded in shear, compression, or a combination of both, providing consistent vibration control and deflection management across varying load directions. This construction principle protects surrounding structures from transmitted vibration, extends machinery service life, and improves operator comfort in vehicle and equipment cab applications. With dimensions at the top of the standard IOS band, this bush is an appropriate choice for pivot bearings, mechanical linkages, cab mounts, and engine mounts across industries including construction and off-highway, power generation, agriculture, marine, railway and mass transit, and automotive applications. Military and defence environments are also served. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes. Are available on request. The IOS family encompasses a broad range of inner diameters, outer diameters and lengths to suit diverse mounting envelopes. Related variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 38mm |
|---|---|
| Outer Diameter (ØB) | 64mm |
| Rubber Body Length (C) | 80mm |
| Overall Length (D) | 88mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 38mm, Outer Dia 64mm, L 80mm - IOS38648088
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SB1285 | FB00-45 | FB00-60 | TBCBA24 | TBCBA20-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 38.1mm | 36mm | 36mm | 38.1mm | 36.8mm |
| Deflection | 2.5 | 2.5 | |||
| Overall Height | 38.1mm | 36.8mm | |||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The IOS38648088 has an inner diameter (A) of 38 mm, an outer sleeve diameter (B) of 64 mm, a C dimension of 80 mm and a D dimension of 88 mm.
A. The Inner-Outer-Sleeve bush uses rubber vulcanised between inner and outer metal sleeves to absorb and control vibration and dynamic loads. It operates in shear, compression or a combination of both, protecting surrounding structures, extending machinery service life and improving operator comfort.
A. No. The rubber-to-metal bonded construction requires no lubrication and is maintenance free throughout its service life.
A. Typical applications include pivot bearings, mechanical linkages, cab mounts and engine mounts. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. Contact PartsForMachines to discuss your requirements.
A. Yes. The IOS range covers a wide span of inner and outer diameters and lengths. Related variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840.
