Product Number: 5030WMM28
Variations

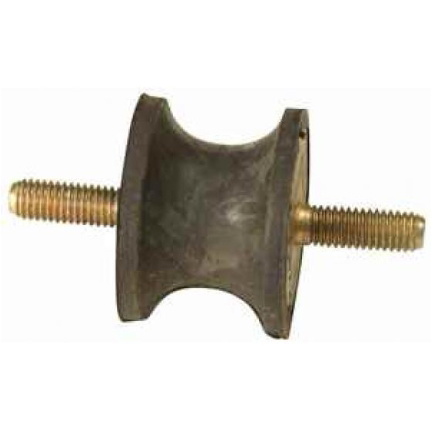

Engineered for heavier duty and high-load applications, the 5030WMM28 is a waisted male-male bobbin anti-vibration mount with an outer diameter of 50 mm, a waist diameter of 42 mm, a height of 30 mm, M10 threaded studs, and an overall length of 28 mm. Sitting at the upper end of the waisted bobbin range by size, it is designed to reduce vibration and shock in demanding industrial and mobile environments where robust mounting performance is required. The mount employs rubber-to-metal bonded construction, allowing it to operate effectively in shear, compression, or a combination of both loading modes. This versatility means a single mount geometry can address multiple installation requirements without the need for separate dedicated components. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for more arduous service conditions, and additional custom sizes can be specified to suit particular OEM or replacement requirements. At this size band, the 5030WMM28 is well suited to the isolation of diesel engines, generator sets, and heavy industrial machinery and equipment where shock loads and higher static weights demand a mount with greater structural capacity. It also finds application in power generation plant, construction and off-highway machinery, agricultural equipment, and marine installations. By absorbing vibration energy before it transmits into surrounding structures, the mount protects adjacent components, extends machinery service life, and improves operator comfort over extended working periods. This mount is part of a wide waisted bobbin family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 0806MF10-60 | 0808MM06-45 | 0808MM06-60 | 0808MM06-70 | 100100FF16-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 08mm | 08mm | 100mm | ||
| Height | 6mm | 8mm | |||
| Size | 08x08mm | 8x8mm | 08x08mm | 100x100mm | |
| Deflection | NA | 0.6 | 6 | 0.6 | 9.2 |
| Diameter | 08mm | 08mm | 100mm | ||
| Diameter Range | Up to 10mm | Up to 10mm | 51-100mm | ||
| Length Range | Up to 10mm | Up to 10mm | 51-100mm | ||
| Mount Dimension | 8mm | 8mm | |||
| Shore Hardness | 45 | 70 | 45 | ||
| Thread | M3 | M3 | M3 | M3 | M16 |
| Show More | |||||
A. The 5030WMM28 has an outer diameter (D1) of 50 mm, a waist diameter (D2) of 42 mm, a height (H) of 30 mm, M10 male threads (d), and an overall length (L) of 28 mm.
A. The 5030WMM28 can be loaded in shear, compression, or a combination of both, making it adaptable to a wide range of mounting configurations.
A. This upper-range waisted bobbin mount is designed for heavier duty installations including diesel engines, generator sets, heavy industrial machinery and equipment, construction and off-highway plant, agricultural equipment, and marine applications where higher static loads and shock inputs are present.
A. The mount uses rubber-to-metal bonded construction, which ensures a secure mechanical bond between the rubber element and the metal threaded studs for reliable performance under sustained load.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds can be specified on request, and additional custom sizes are also available for OEM or specialist replacement requirements.
A. The waisted bobbin family includes a broad range of sizes. Smaller variants available include the 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, and 15/8.5/15WMM10, with further sizes at 180/148/75WMM34 and 180/150/75WMM45.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
