Product Number: 4625WMM28
Variations

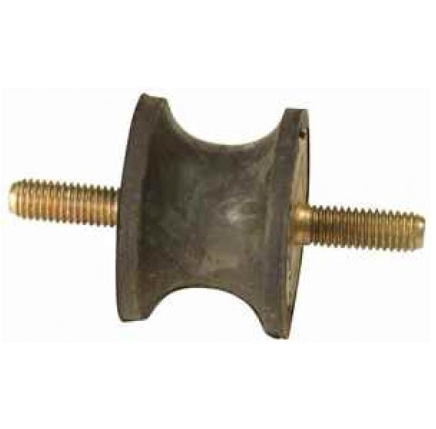

Rubber-to-metal bonded construction defines this waisted bobbin mount (4625WMM28), with an outer diameter of 46 mm, inner waist diameter of 40 mm, height of 25 mm, M10 thread, and an overall length of 28 mm, dimensions that position it in the upper range of the waisted bobbin family and suit mainstream general-machinery mounting at moderate loads. Capable of operating in shear, compression, or a combination of both, it provides a low-cost anti-vibration solution that reduces transmitted vibration and shock whilst improving machinery lifespan, protecting surrounding structures, and enhancing operator comfort. The mount's rubber-to-metal bonded design delivers reliable resilience across a broad range of industrial environments. Where stainless steel metalwork or oil-resistant and high-temperature rubber compounds are required, these are available on request alongside additional and custom sizes, making the range adaptable to more demanding specifications beyond the standard offering. At this diameter and thread size, 4625WMM28 is well suited to applications including industrial machinery and equipment, generator sets, diesel engines, and air-conditioning units. The male-male thread configuration (also referred to as Type A or Type 1) allows straightforward integration into assemblies where a through-thread or stud arrangement is required. Industries served by the wider family include power generation, construction and off-highway, agriculture, marine, automotive, and railway and mass transit. This mount is part of a wider range of waisted bobbin variants.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100FF16-45 | 0808MM06-45 | 0808MM06-70 | 0808MM06-60 | 0806MF10-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 100mm | 08mm | 08mm | ||
| Height | 8mm | 6mm | |||
| Size | 100x100mm | 08x08mm | 08x08mm | 8x8mm | |
| Deflection | 9.2 | 0.6 | 0.6 | 6 | NA |
| Diameter | 100mm | 08mm | 08mm | ||
| Diameter Range | 51-100mm | Up to 10mm | Up to 10mm | ||
| Length Range | 51-100mm | Up to 10mm | Up to 10mm | ||
| Mount Dimension | 8mm | 8mm | |||
| Shore Hardness | 45 | 45 | 70 | ||
| Thread | M16 | M3 | M3 | M3 | M3 |
| Show More | |||||
A. The 4625WMM28 has an outer diameter (D1) of 46 mm, a waist diameter (D2) of 40 mm, a height (H) of 25 mm, an M10 thread, and an overall length (L) of 28 mm.
A. This mount uses a male-male thread configuration, also referred to as Type A or Type 1, with an M10 thread on both ends.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is integrated into a mounting arrangement.
A. Applications supported by the family source include industrial machinery and equipment, generator sets, diesel engines, air-conditioning units, and exhaust mountings, across industries such as power generation, construction and off-highway, agriculture, marine, automotive, and railway and mass transit.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. Related variants include the 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 180/148/75WMM34, and 180/150/75WMM45, covering a broad span of load capacities and configurations.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
