Product Number: 100100FF16-45
Variations

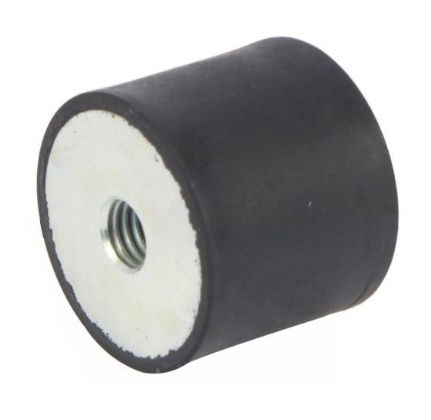

Where vibration isolation takes priority over load restraint, the 100x100mm Female-Female Bobbin Mount in 45 Shore A rubber (SKU: 100100FF16-45) is the soft-grade choice for lighter or sensitive equipment that demands maximum compliance. At this grade, the mount accepts up to 175 kg per mounting point and yields a generous 9.2 mm of deflection, the combination that produces the greatest isolation efficiency across the range and is particularly effective against lower-frequency vibration inputs where a firmer grade would transmit rather than absorb. Constructed with rubber-to-metal bonded technology, this female-female bobbin can be loaded in shear, compression or a combination of both, giving engineers flexibility in orientation without compromising mount integrity. The 100 mm diameter by 100 mm height geometry suits standard mounting centres on mainstream general machinery, and the M16 female thread at each end provides a direct, tooled fixing that keeps installation straightforward on both equipment base and support structure. Soft-grade mounts of this type are well matched to applications where the primary goal is protecting sensitive instruments, reducing structure-borne noise transmitted to surrounding plant, or isolating equipment running at frequencies where compliance is essential. Typical installations include generator sets, air-conditioning units, diesel engines and industrial machinery across power generation, agriculture, marine and construction sectors. The mount also improves operator comfort and extends the service life of connected machinery by absorbing shock energy before it reaches surrounding structures. This SKU is the 45 Shore A variant in the 100x100mm M16 female-female family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Body diameter D (mm) | 100 |
| Overall height H (mm) | 100 |
| Fixing thread / bolt size d | M16 |
| Max load (kg) | 175 |
| Deflection (mm) | 9.2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 7030MF37-45 | 6045FF10-60 | 6045FF12-60 | 5030MM23-70 | 5030MM28-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 45mm | 45mm | 30mm | 30mm |
| Size | 70x30mm | 60x45mm | 60x45mm | 50x30mm | 50x30mm |
| Deflection | 2.4 | 4 | 4 | 2.5 | 2.5 |
| Diameter | 70mm | 60mm | 60mm | 50mm | 50mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 26-50mm | 26-50mm |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 45 | 60 | 60 | 70 | 70 |
| Thread | M12 | M10 | M12 | M8 | M10 |
| Show More | |||||
A. This 45 Shore A mount is rated to a maximum load of 175 kg per mounting point and provides 9.2 mm of deflection under that load — making it the most compliant option in the 100x100mm M16 family and the best choice where maximum vibration isolation is required.
A. The mount can be loaded in shear, compression or a combination of both, giving flexibility in installation orientation without compromising the rubber-to-metal bonded construction.
A. Both fixing points are M16 female threads, allowing direct bolted installation to equipment bases and support structures without additional adaptors.
A. The soft 45 Shore A grade is particularly suited to lighter or sensitive equipment, instruments, generator sets, air-conditioning units, diesel engines and industrial machinery where isolating lower-frequency vibration and minimising structure-borne noise transmission is the primary requirement.
A. Applications span power generation, agriculture, marine, construction and off-highway, railway and mass transit, automotive, and military and defence sectors, wherever vibration control is needed to protect equipment and improve operator comfort.
A. Yes — the 100x100mm M16 female-female geometry is also available in 60 Shore A (100100FF16-60) and 70 Shore A (100100FF16-70). Related M16 female-female mounts include 100x40mm (10040FF16), 100x45mm (10045FF16), 100x50mm (10050FF16), 100x55mm (10055FF16), 100x60mm (10060FF16) and 105x75mm (10575FF16).
A. Yes — stainless steel metalwork, oil-resistant rubber and high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
