Product Number: 1515MM15-70
Variations

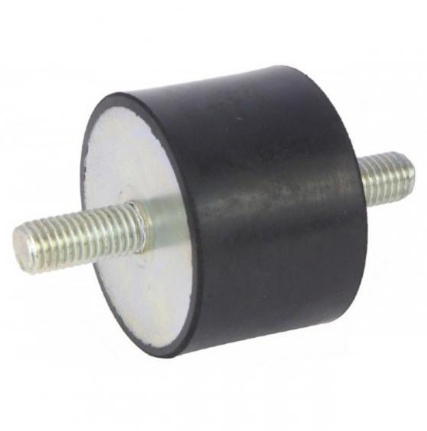

Where compact mountings must resist shock, restrain movement, and carry load without excessive give, the 15x15mm male-male bobbin mount at 70 Shore A is the firm-grade choice in this geometry. Rated to a maximum load of 15.0 kg with a deflection of just 1.3 mm, this 1515MM15-70 is engineered for installations where controlled rigidity is a priority, holding components firmly under sustained loading or sudden impact rather than yielding to isolate. Rubber-to-metal bonded construction gives the mount its structural integrity across shear, compression, or combined loading directions. The 70 Shore A rubber compound delivers the stiffest response within the M5 bobbin range, making it suited to applications where the mount must resist displacement and maintain positional accuracy under heavier cyclical forces. Dual M5 male threaded studs, each with a 15 mm engaged length. Allow clean, direct fastening between two structural faces. Typical applications for this firm-grade bobbin include exhaust mounting systems, diesel engine ancillaries, generator set frames, and industrial machinery installations where vibration amplitude is high and structural restraint is needed alongside isolation. It also serves within agricultural, marine, construction, and power-generation equipment where compact footprint and positive load retention are both required. The rubber-to-metal bond improves machinery lifespan and protects surrounding structures from transmitted shock and vibration. This mount is available in alternative Shore hardness grades for the same 15x15mm M5 geometry: 45 Shore A (1515MM15-45) and 60 Shore A (1515MM15-60).
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 15 |
| Overall height H (mm) | 15 |
| Stud thread d | M5 |
| Stud length L (mm) | 15 |
| Max load (kg) | 15 |
| Deflection (mm) | 1.3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3035FF08-45 | 2015FF06-60 | 1515MF10-70 | 3030MF20-45 | 2522MM20-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 35mm | 15mm | 30mm | 22mm | |
| Height | 15mm | ||||
| Size | 30x35mm | 20x15mm | 15x15mm | 30x30mm | 25x22mm |
| Deflection | 3.1 | 1 | 1.3 | 2.6 | 1.8 |
| Diameter | 30mm | 15mm | 30mm | 25mm | |
| Diameter Range | 26-50mm | 11-25mm | 26-50mm | 11-25mm | |
| Length Range | 26-50mm | 11-25mm | 26-50mm | 11-25mm | |
| Shore Hardness | 45 | 70 | 45 | 45 | |
| Thread | M8 | M6 | M4 | M8 | M8 |
| Show More | |||||
A. The 1515MM15-70 has a maximum load rating of 15.0 kg and a deflection of 1.3 mm.
A. The mount features dual M5 male threaded studs, each with a 15 mm engaged length, for direct fastening between two structural faces.
A. At 70 Shore A, this is the firmest grade available in the 15x15mm M5 bobbin geometry. Harder grades carry higher loads with less movement, making this grade appropriate where the mount must resist displacement and provide structural restraint under shock or sustained loading, rather than maximising isolation deflection.
A. The mount body measures 15 mm in diameter by 15 mm in height, with M5 male threaded studs of 15 mm length on each end.
A. The mount may be loaded in shear, compression, or a combination of both, providing versatility across different mounting orientations.
A. This firm-grade bobbin is suited to exhaust mountings, diesel engines, generator sets, industrial machinery, and agricultural or marine equipment where compact size, positive load retention, and resistance to shock and vibration are required.
A. Yes — the same geometry is available in 45 Shore A (1515MM15-45) for greater deflection and isolation at lighter loads, and 60 Shore A (1515MM15-60) as a general-purpose intermediate grade.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for specialist applications.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
