Product Number: 2522MM20-45
Variations

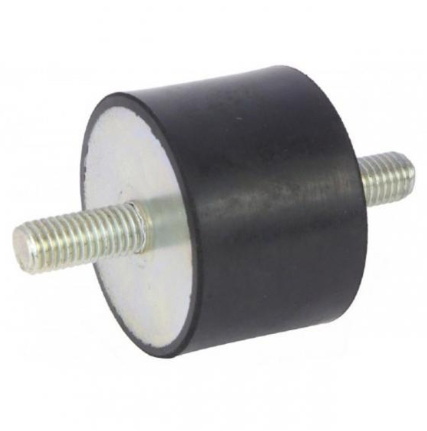

Where isolation takes priority over restraint, the 25 x 22 mm male-male bobbin mount in 45 Shore A rubber delivers the greatest deflection and softness available within this geometry, making it the natural choice for lighter loads, compact installations, and equipment sensitive to low-frequency vibration. SKU 2522MM20-45 carries a maximum load of 14.4 kg with a deflection of 1.8 mm, characteristics that position it firmly in the lower end of the range for applications where compliance and vibration absorption matter more than stiffness. The rubber-to-metal bonded construction provides a secure, durable connection between the soft elastomer body and the M8 threaded male stud at each end, with a stud length of 20 mm. At 45 Shore A, this grade of rubber offers the greatest movement under load within the series, translating mechanical energy into heat rather than transmitting shock or vibration into surrounding structures. This protects sensitive instruments, control panels, and lightweight machinery from the cumulative effects of vibration fatigue. The mount is usable in shear, compression, or a combination of both, giving engineers flexibility when designing or retrofitting isolation systems for air-conditioning units, exhaust mountings, instrument panels, small generator sets, industrial machinery, and equipment across the construction and off-highway, agricultural, power generation, marine, railway and mass transit, automotive, and military sectors. Its compact 25 x 22 mm body suits installations where space is limited. This mount is part of an extended male-male and female bobbin family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Body diameter D (mm) | 25 |
| Overall height H (mm) | 22 |
| Stud thread d | M8 |
| Stud length L (mm) | 20 |
| Max load (kg) | 14.4 |
| Deflection (mm) | 1.8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1508MM10-60 | 2030FF06-70 | 1510MM10-60 | 2015FF06-60 | 2030MF18-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 10mm | 30mm | ||
| Height | 8mm | 15mm | |||
| Size | 15x8mm | 20x30mm | 15x10mm | 20x15mm | 20x30mm |
| Deflection | 0.6 | 2.6 | 0.8 | 1 | 2.6 |
| Diameter | 20mm | 15mm | 20mm | ||
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | ||
| Length Range | 26-50mm | Up to 10mm | 26-50mm | ||
| Mount Dimension | 15mm | ||||
| Shore Hardness | 70 | 60 | 70 | ||
| Thread | M4 | M6 | M4 | M6 | M6 |
| Show More | |||||
A. The 2522MM20-45 has an outer body diameter of 25 mm and a height of 22 mm. The male threaded studs are M8 with a length of 20 mm. The maximum load rating is 14.4 kg and the deflection under load is 1.8 mm.
A. Shore A is a standardised hardness scale for rubber and elastomers. At 45 Shore A, this mount uses a softer rubber grade that produces greater deflection under load and better vibration isolation, particularly at lower frequencies. It is suited to lighter loads and applications where isolating vibration is more important than limiting movement.
A. This mount is designed for air-conditioning units, exhaust mountings, instrument panels, small generator sets, and industrial machinery and equipment. Its soft 45 Shore A grade makes it particularly suitable for lighter or sensitive equipment where vibration isolation is the primary requirement.
A. This mount may be loaded in shear, compression, or a combination of both, providing flexibility for different mounting orientations and installation designs.
A. These mounts are used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes. The same 25 x 22 mm male-male body is also available in 60 Shore A (2522MM20-60) and 70 Shore A (2522MM20-70). A wider family of bobbin mounts in different sizes includes 0808MM06, 100100MM44, 10030MM44, 10040MM44, 10050MM44, and 10055MM44.
A. Yes. Stainless steel hardware and oil-resistant or high-temperature rubbers, along with additional and custom sizes, are available on request.
