Product Number: 1513MF10-70
Variations

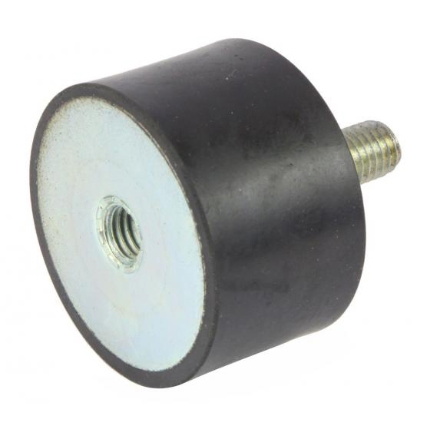

With a rated maximum load of 10.8 kg with a controlled deflection of just 1.1 mm, the 1513MF10-70 is the 70 Shore A firm-grade variant of the 15x13mm male-female bobbin mount, engineered to hold compact installations firmly under load while resisting shock and impact where movement must be minimised. At 15 mm diameter by 13 mm height with M4 male and female threads, this is the smallest format in the male-female bobbin range, making it well suited to confined installations that still demand the grip and restraint of a firm rubber grade. The rubber-to-metal bonded construction allows the mount to operate in shear, compression, or a combination of both loading modes. At 70 Shore A, the rubber compound provides the least deflection of the available grades in this geometry, prioritising load-carrying capacity and positional stability over isolation travel. This characteristic suits applications where an instrument, lightweight engine ancillary, or compact piece of industrial equipment must be secured against vibration and intermittent shock without permitting appreciable movement at the mounting point. This mount is drawn from a family serving many industries and applications, including air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery and equipment. Industries served include power generation, marine, automotive, agriculture, and construction and off-highway sectors. The weight range covered across the family extends from approximately 1 kg to 2,000 kg per mounting point, with the 1513MF10-70 positioned at the lighter, more compact end of the programme.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 15 |
| Overall height H (mm) | 13 |
| Stud thread d1 | M4 |
| Stud length L (mm) | 10 |
| Diameter / thread d2 (mm) | M4 |
| Max load (kg) | 10.8 |
| Deflection (mm) | 1.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1515MF10-60 | 1515MF13-60 | 1515MM12-60 | 1515MM13-60 | 1515MM15-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Height | 15mm | 15mm | 15mm | 15mm | 15mm |
| Size | 15x15mm | 15x15mm | 15x15mm | 15x15mm | |
| Deflection | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| Mount Dimension | 15mm | 15mm | 15mm | 15mm | 15mm |
| Thread | M5 | M4 | M6 | M4 | M5 |
A. The 1513MF10-70 is rated to a maximum load of 10.8 kg with a deflection of 1.1 mm, making it the firmest option in the 15x13mm male-female bobbin range.
A. The mount features an M4 male stud with a 10 mm thread length (d1 x L: M4 x 10) and an M4 female thread (d2: M4).
A. At 70 Shore A, this is the firmest grade available in this geometry. It carries the highest load with the least movement, making it suited to applications where the mounted item must be held firmly against shock or impact rather than maximising vibration isolation travel.
A. The 1513MF10-70 can be loaded in shear, compression, or a combination of both, providing flexibility across different installation configurations.
A. Applications include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery and equipment. Industries served include power generation, marine, automotive, agriculture, and construction and off-highway sectors.
A. Yes — the same geometry is offered in 45 Shore A (1513MF10-45) and 60 Shore A (1513MF10-60) for installations requiring greater deflection or lower-load isolation.
A. Stainless steel metal parts and oil-resistant or high-temperature rubber compounds are available on request for specialist or demanding environments.
