Product Number: 1515MM13-60
Variations

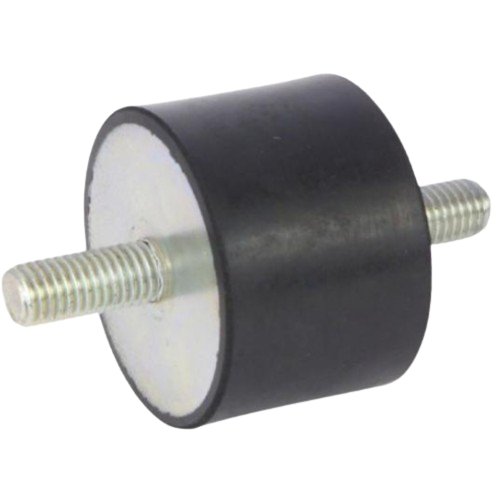

Balancing vibration isolation with steady mechanical support, the 15x15mm Male-Male Bobbin Mount M4 60 Shore (1515MM13-60) is a compact rubber-to-metal bonded anti-vibration mount suited to lighter installations where neither extreme softness nor high rigidity is required. At a maximum load of 10.7 kg per mounting and a controlled deflection of 1.3 mm, this medium-grade mount occupies the practical midpoint of the range, making it a dependable choice wherever modest loads call for consistent, balanced performance across everyday operating cycles. Constructed with rubber-to-metal bonded technology, the mount accepts loading in shear, compression, or a combination of both, giving engineers flexibility in how it is oriented within an assembly. The 60 Shore A rubber hardness delivers the equilibrium characteristic of a medium grade: sufficient compliance to attenuate vibration and reduce transmitted shock, yet enough stiffness to maintain positional stability under the sustained loads typical of compact machinery. Both male stud threads are M4 x 13 mm, and the overall body measures 15 mm diameter by 15 mm height, a footprint that suits installations where space is limited but reliable vibration control remains a priority. This mount is well suited to instruments, light-duty industrial equipment, small generator sets, and similar applications where load and vibration characteristics fall within the medium range. It contributes to improved machinery lifespan, protects surrounding structures from vibration-induced fatigue, and supports operator comfort over extended running periods. Industries including power generation, automotive, marine, and agricultural equipment commonly employ mounts of this type and size for such duties.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 15mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (V) | M4 |
| Bolt Length (L) | 13mm |
| Max Load (Kg) | 10.7 |
| Deflection (mm) | 1.3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1513MF10-70 | 2530FF08-45 | 1515MF10-60 | 1515MF13-60 | 1515FF04-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 13mm | 30mm | |||
| Height | 15mm | 15mm | 15mm | ||
| Size | 15x13mm | 25x30mm | 15x15mm | 15x15mm | |
| Deflection | 1.1 | 2.6 | 1.3 | 1.3 | 1.3 |
| Diameter | 15mm | 25mm | |||
| Diameter Range | 11-25mm | 11-25mm | |||
| Length Range | 11-25mm | 26-50mm | |||
| Mount Dimension | 15mm | 15mm | |||
| Shore Hardness | 70 | 45 | |||
| Thread | M4 | M8 | M5 | M4 | M4 |
| Show More | |||||
A. The mount body measures 15 mm diameter by 15 mm height (D x H). Both male studs are M4 with a 13 mm thread length (d x L: M4 x 13). The maximum load rating is 10.7 kg per mounting, with a deflection of 1.3 mm.
A. At 60 Shore A, this is a medium-hardness grade. It provides a balanced combination of vibration isolation and structural support — offering enough compliance to attenuate vibration and absorb shock, while maintaining sufficient stiffness to hold position under the sustained loads typical of compact or light-duty machinery.
A. The mount can be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within a machine assembly.
A. This mount is suited to instruments, light-duty industrial machinery, small generator sets, air-conditioning units, exhaust mountings, and automotive applications. Industries served include power generation, marine, agricultural, automotive, and general industrial equipment sectors.
A. Yes. The same 15x15mm M4 body is available in 45 Shore A (1515MM13-45) for softer isolation at lower loads, and 70 Shore A (1515MM13-70) for higher-load, reduced-deflection duties. Additional body sizes include 0808MM06, 100100MM44, 10030MM44, 10040MM44, 10050MM44, and 10055MM44.
A. Yes. Stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request, alongside additional and custom sizes.
