Product Number: 1010MF06-70
Variations

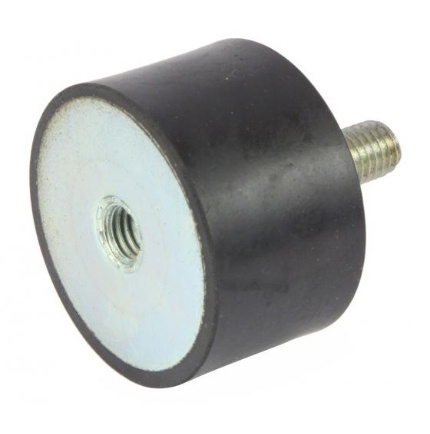

Firm resistance and minimal deflection define the 1010MF06-70 male-female bobbin mount, a rubber-to-metal bonded anti-vibration mount rated to a maximum load of 5.5 kg with a deflection of just 0.8 mm. At 70 Shore A, this is the hardest grade in the 10×10 mm male-female range, engineered to hold components firmly under higher loads and to resist displacement under shock or impact. The compact 10 mm diameter by 10 mm height format and M4 thread configuration make it well suited to precision instruments, small diesel engines, generator sets, and automotive sub-assemblies where the mounting must not yield under operating stress. The rubber-to-metal bonded construction delivers consistent performance whether loaded in shear, compression, or a combination of both. The firm 70 Shore A rubber resists excessive movement in service, making it the preferred choice where positional stability and load restraint are the primary requirements rather than maximum isolation. Custom variants with oil-resistant or high-temperature rubbers, and stainless steel metalwork, are available on request. This mount is part of a graded hardness range spanning the 10×10 mm male-female bobbin format. Softer grades (45 Shore A and 60 Shore A) carry lower loads but provide greater deflection and superior vibration isolation for sensitive or lightweight installations. The 1010MF06-70 is the firm-grade option where load-bearing capacity and restraint take precedence. For other load capacities, dimensions, and thread configurations across the male-female and male-male bobbin families, refer to the variant range: 1010MF06-45, 1010MF06-60, 100100MF44, 10050MF44, 10055MF44, 10060MF44, 10075MF44, and 1008MF10.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 10 |
| Overall height H (mm) | 10 |
| Stud thread d1 | M4 |
| Stud length L (mm) | 06 |
| Diameter / thread d2 (mm) | M4 |
| Max load (kg) | 5.5 |
| Deflection (mm) | 0.8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

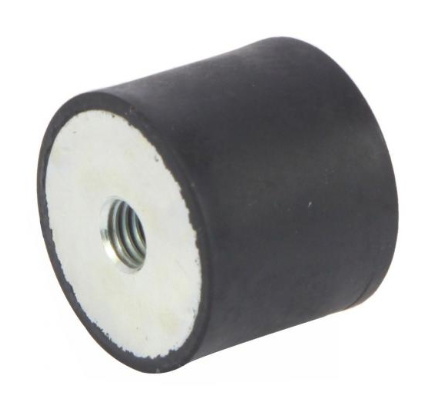

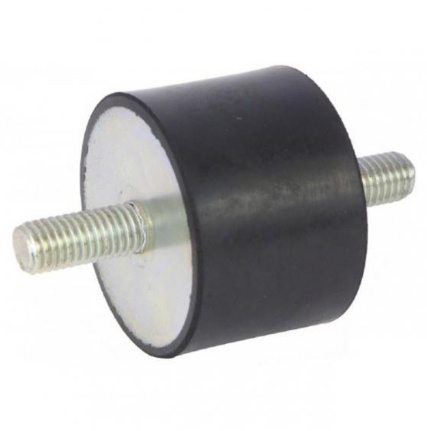

| PRODUCT NUMBER | 1010MM10-70 | 2030MF18-45 | 2030FF06-45 | 2030MM18-45 | 1515MM12-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 10mm | 30mm | 30mm | 30mm | 15mm |
| Size | 10x10mm | 20x30mm | 20x30mm | 20x30mm | 15x15mm |
| Deflection | 0.8 | 2.6 | 2.6 | 2.6 | 1.3 |
| Diameter | 10mm | 20mm | 20mm | 20mm | 15mm |
| Diameter Range | Up to 10mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Length Range | Up to 10mm | 26-50mm | 26-50mm | 26-50mm | 11-25mm |
| Shore Hardness | 70 | 45 | 45 | 45 | 45 |
| Thread | M4 | M6 | M6 | M6 | M6 |
| Show More | |||||
A. The 1010MF06-70 is rated to a maximum load of 5.5 kg with a deflection of 0.8 mm under that load.
A. The male stud is M4 with a 6 mm thread length (d1 x L: M4 x 06) and the female thread is also M4 (d2: M4).
A. The mount measures 10 mm in diameter by 10 mm in height (D x H: 10 x 10).
A. The 70 Shore A grade carries the highest load in the 10×10 mm male-female range with the least deflection (0.8 mm), making it the correct choice when positional restraint, shock resistance, and load-bearing capacity are the priority over maximum vibration isolation.
A. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both.
A. The family source confirms suitability for air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery and equipment. Industries served include automotive, power generation, marine, agriculture, construction and off-highway, railway and mass transit, and military and defence.
A. Yes — oil-resistant and high-temperature rubbers, stainless steel metalwork, and additional or custom sizes are available on request.
A. Related variants include 1010MF06-45 and 1010MF06-60 (softer grades in the same 10×10 mm format), plus 100100MF44, 10050MF44, 10055MF44, 10060MF44, 10075MF44, and 1008MF10 for other dimensions and configurations.
