Product Number: 1515MF10-60
Variations

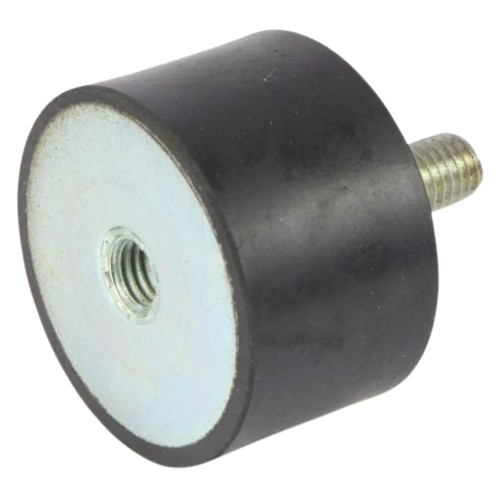

Sized at 15 x 15 mm with M4 male and female threads, this compact male-female bobbin mount (SKU 1515MF10-60) is rated to a maximum load of 11.0 kg with a controlled deflection of 1.3 mm, figures that position it squarely in the light-duty segment of the range, suited to applications where balanced isolation and structural support are both required. The 60 Shore A hardness grade sits at the midpoint of the available hardness spectrum, delivering a working compromise between the greater deflection of softer grades and the higher load tolerance of firmer ones. Rubber-to-metal bonded construction gives the mount its structural integrity, while the elastomeric element works in shear, compression, or a combination of both, absorbing vibration energy and attenuating shock before it can transmit into surrounding structures or the operator environment. By reducing the mechanical energy that propagates through a mounting point, these bobbins contribute to improved machinery lifespan and greater operator comfort over extended duty cycles. The 60 Shore A grade is well matched to instruments, smaller air-conditioning units, light industrial machinery, and equipment where loads fall within the 11.0 kg per mounting threshold and a moderate, predictable deflection of 1.3 mm is acceptable. The M4 thread configuration, male stud on one side, female thread on the other. Suits installations where a through-bolt or tapped-hole arrangement is required on opposite faces. Custom configurations in oil-resistant or high-temperature rubbers and stainless steel metals are available on request.
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 15mm |
|---|---|
| Height (H) | 15mm |
| Thread size (V) | M5 |
| Bolt Length (I) | 10mm |
| Max Load (Kg) | 11 |
| Deflection (mm) | 1.3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1513MF10-70 | 1515FF04-60 | 1515MM12-60 | 1515MM13-60 | 1515MM15-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 13mm | ||||
| Height | 15mm | 15mm | 15mm | 15mm | |
| Size | 15x13mm | 15x15mm | 15x15mm | 15x15mm | 15x15mm |
| Deflection | 1.1 | 1.3 | 1.3 | 1.3 | 1.3 |
| Diameter | 15mm | ||||
| Diameter Range | 11-25mm | ||||
| Length Range | 11-25mm | ||||
| Mount Dimension | 15mm | 15mm | 15mm | ||
| Shore Hardness | 70 | ||||
| Thread | M4 | M4 | M6 | M4 | M5 |
| Show More | |||||
A. The 1515MF10-60 is rated to a maximum load of 11.0 kg per mounting point, making it suitable for lighter-duty installations where compact geometry and controlled support are the priority.
A. The specified deflection for this mount is 1.3 mm at maximum rated load. This moderate deflection is characteristic of the 60 Shore A grade, which balances isolation performance with positional stability.

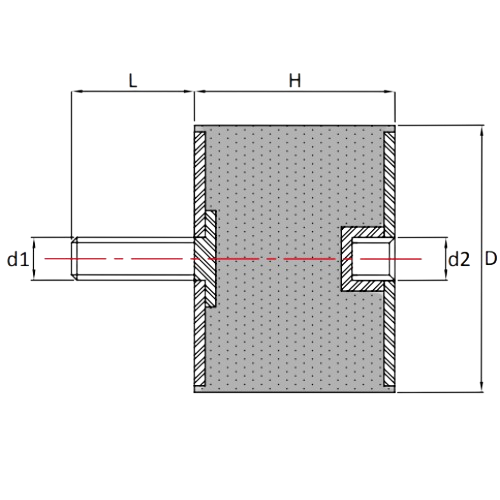

A. The mount has an M4 male stud (d1) with a 10 mm stud length and an M4 female thread (d2) on the opposite face. This male-female configuration allows fitment between a tapped component on one side and a bolt or fastener on the other.
A. The mount may be loaded in shear, compression, or a combination of both, giving installation flexibility depending on the orientation of the vibration source relative to the mount axis.
A. At 60 Shore A and 11.0 kg maximum load, this mount is well suited to instruments, smaller air-conditioning units, light industrial machinery, and general equipment where a balance of isolation and support is needed at lower load levels.
A. Yes. The same 15 x 15 mm M4 geometry is available in 45 Shore A (SKU 1515MF10-45) for greater isolation at lighter loads, and 70 Shore A (SKU 1515MF10-70) for higher loads with less movement. Larger diameter and load-rated variants include 100100MF44, 10050MF44, 10055MF44, 10060MF44, 10075MF44, and 1008MF10.
A. Custom configurations — including oil-resistant rubbers, high-temperature rubber compounds, and stainless steel metal parts — are available on request for applications with specific environmental requirements.
