Product Number: HYDVC1.400SQ
Variations
Carrying loads across a demanding mid-range band, the HYDVC1.400SQ is a 105 mm (dim. A) Type B hydro mount with M10 fixing thread, engineered to deliver up to 95% vibration reduction in lower-frequency, larger-scale applications. Its load-range position makes it a practical choice where isolation requirements exceed what lighter-duty mounts can reliably achieve, without stepping up to the highest-capacity units in the range. Rubber-to-metal bonded construction forms the structural foundation, allowing the mount to accept loading in shear, compression, or a combination of both. This flexibility in load direction means a single mount geometry can be deployed across a variety of mounting configurations without modification. The hydro mount design improves machinery lifespan, protects surrounding structures and improves operator comfort, particularly relevant in cabbed applications where transmitted vibration directly affects the operator. With key dimensions of B1 64 mm, B2 70 mm, L1 79.5 mm, L2 82.5 mm, E 63 mm, F 86 mm, G 36 mm, H 45 mm, I 5 mm, J 91 mm and K 10 mm, the HYDVC1.400SQ is sized for construction and earth-moving machinery, off-highway vehicles and operator cabs, as well as agricultural machinery and power-generation plant. Marine, railway and mass transit, automotive, and military and defence applications also fall within the served industries. Mounts of this type are particularly effective where lower operating frequencies demand higher deflection compliance alongside secure load management. This mount forms part of a wider family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | B |
|---|---|
| Overall length / diameter A (mm) | 105 |
| Width B1 (mm) | 64 |
| Width B2 (mm) | 70 |
| Length L1 (mm) | 79.5 |
| Length L2 (mm) | 82.5 |
| Height / dimension C (mm) | M10 |
| Dimension E (mm) | 63 |
| Fixing hole / dimension F (mm) | 86 |
| Fixing hole spacing G (mm) | 36 |
| Overall height H (mm) | 45 |
| Dimension I (mm) | 5 |
| Dimension J (mm) | 91 |
| Dimension K (mm) | 10 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

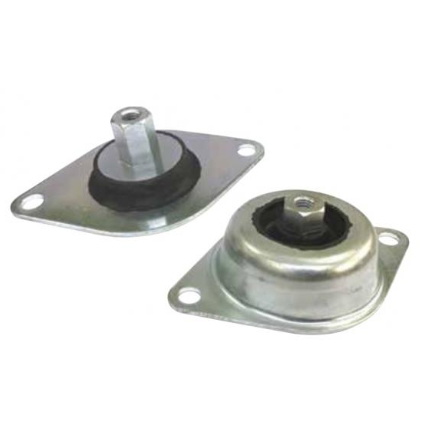

| PRODUCT NUMBER | SCM10063 | SCM345215 | HNG-lower | HNG-upper | L20-2-40 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 110mm | 96mm | 96mm | 90mm |
| Size Range | 51-100mm | 101-200mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M8 | M8 | |||
A. The HYDVC1.400SQ is a Type B mount with a 105 mm A dimension and M10 thread. Further dimensions are: B1 64 mm, B2 70 mm, L1 79.5 mm, L2 82.5 mm, E 63 mm, F 86 mm, G 36 mm, H 45 mm, I 5 mm, J 91 mm and K 10 mm.
A. The hydro mount design offers vibration reduction of up to 95%, making it well suited to lower-frequency, larger applications where high isolation performance is required.
A. The mount can accept loading in shear, compression, or a combination of both, giving flexibility across a range of mounting orientations and machine configurations.
A. This mount is suited to construction and earth-moving machinery, off-highway vehicles and operator cabs, agricultural machinery, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Hydro mounts improve machinery lifespan, protect surrounding structures from vibration-induced stress, and improve operator comfort — particularly important in cabbed off-highway and construction equipment.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. Related variants include HYDVC0.250, HYDVC1.400, HYDVC1.500, HYDVC1.500SQ, HYDVC1.550, HYDVC1.550SQ, HYDVC3.200 and HYDVC3.200SQ, covering a broad spread of sizes and load capacities.
