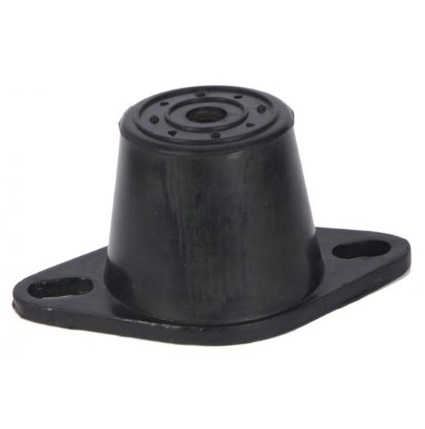

The TMM is a Type A turret mounting with M10 thread, measuring 95 mm across the base (A), 60 mm at dimension C, and an overall height ranging from 67 to 76 mm (B), designed to provide vibration isolation for instruments, electronics and light equipment where protecting sensitive items from vibration is the primary requirement. With a rubber-to-metal bonded construction, the mount may be loaded in shear, compression or a combination of both, making it adaptable to a range of installation orientations and mounting arrangements. The rubber-to-metal bonded build is central to the TMM's performance: the bond transmits loads progressively while absorbing vibration energy, improving machinery lifespan, protecting surrounding structures and improving operator comfort. Key dimensional references are: D 9 mm, E 14 mm, F 45 mm, G 5 mm, H 56 mm, and thread I M10. The mount belongs to the instrument and general mountings family, lightweight, low-load solutions engineered specifically for vibration isolation of sensitive items rather than high-load structural restraint. The TMM serves a broad spread of industries, including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. Where stainless steel metalwork or oil-resistant and high-temperature rubber compounds are required, these are available on request, as are additional and custom sizes. Turret mountings are available across several configurations and sizes. Related variants include the TM229-40, TM229-50 and TM229-60, the TMC6535-45, TMC6535-55 and TMC6535-65, and the TML and TML10185-45, all listed separately on the PartsForMachines platform.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 95 |
| Width / dimension B (mm) | 67-76 |
| Height / dimension C (mm) | 60 |
| Outer diameter D (mm) | 9 |
| Dimension E (mm) | 14 |
| Fixing hole / dimension F (mm) | 45 |
| Fixing hole spacing G (mm) | 5 |
| Overall height H (mm) | 56 |
| Dimension I (mm) | M10 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The TMM is a Type A turret mounting with an M10 thread. Key dimensions are: A 95 mm, B 67–76 mm, C 60 mm, D 9 mm, E 14 mm, F 45 mm, G 5 mm, and H 56 mm.
A. The TMM belongs to the instrument and general mountings family, intended for lightweight, low-load vibration isolation of instruments, electronics and light equipment. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The TMM may be loaded in shear, compression or a combination of both, giving flexibility in how it is orientated and installed within a machine or structure.
A. The TMM uses a rubber-to-metal bonded construction. This bond transmits and absorbs vibration energy progressively, helping to improve machinery lifespan, protect surrounding structures and improve operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. Additional and custom sizes can also be supplied on request.
A. Related variants listed on the PartsForMachines platform include the TM229-40, TM229-50, TM229-60, TMC6535-45, TMC6535-55, TMC6535-65, TML and TML10185-45.
