Product Number: WMM2312-50
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

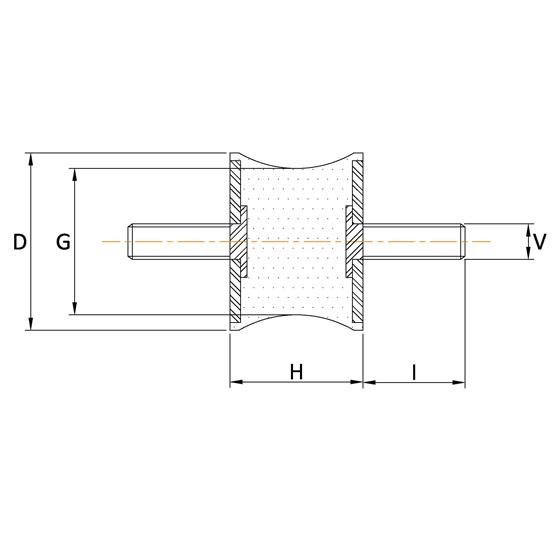

| Outer Dimension (D) | 54mm |
|---|---|
| Inner Dimension (G) | 42mm |
| Height (H) | 36mm |
| Bolt Width (I) | 25mm |
| Thread Size (V) | M10 |
| Max Load (Kg) | 60 |
| Deflection (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Waisted Range, Thread Size M8, Max Load 30Kg - WMM1380-HT60
£12.28
£12.04
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | WMM1380-HT60 | HEX1384-60 | HEX1386-45 | HEX200-60 | HEX1385-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 34mm | 26mm | 25mm | 23mm | 22mm |
| Deflection | 2.7 | 2 | 1.7 | 1.5 | 1.5 |
| Thread | M8 | M8 | M12 | M8 | M10 |

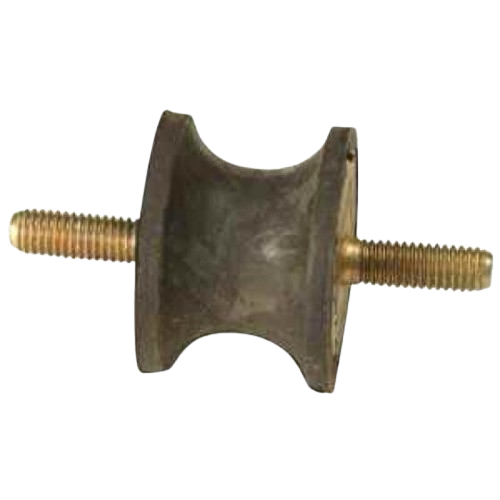

A. The WMM2312 has an outer diameter (D1) of 54 mm, an inner diameter (D2) of 42 mm, a height (H) of 36 mm, an M10 thread (d), and a stud length (L) of 25 mm.
A. The WMM2312 waisted bobbin mount may be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation to suit the application.
A. This mount is designed for heavier-duty applications including diesel engines, generator sets, industrial machinery, larger air-conditioning units, and exhaust mountings, as well as equipment in construction, off-highway, marine, agricultural, and power generation sectors.
A. The waisted bobbin family is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The range includes 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 180/148/75WMM34, and 180/150/75WMM45, covering a broad span of load and dimensional requirements.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
