Product Number: HEX200-60
The HEX200-60 is a 32 x 23 mm hexagon bobbin mount in 60 Shore rubber, rated to 36 kg. It is a low-cost route to cutting vibration and shock on general-purpose industrial equipment.
The mount can be loaded in compression or shear or a combination of the two, and the hexagonal metals let the installer hold it with a spanner so the rubber is not twisted during fitting. This size carries hexagonal end metals so the mount can be held with a spanner during installation, avoiding twist in the rubber: M8 thread with a 18 mm stud, on a 32 mm diameter body 23 mm high. Maximum load is 36 kg at 1.5 mm deflection. Stainless steel metals and oil-resistant or high-temperature rubber compounds are available on request.
This size is offered in this grade; neighbouring sizes in the range cover lighter and heavier duties.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

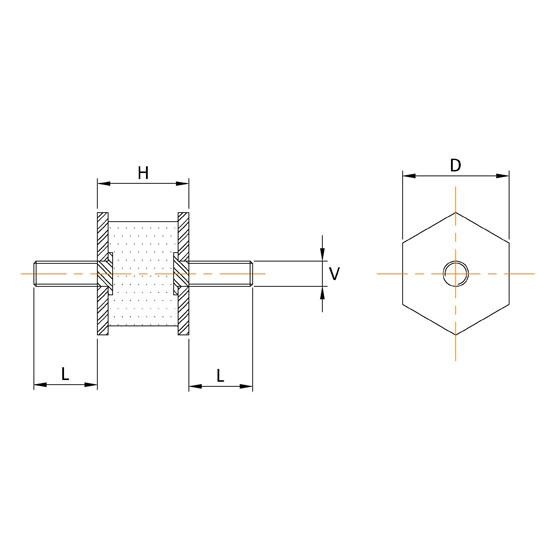

| Rubber Mount Dimension (D) | 32mm |
|---|---|
| Height (H) | 23mm |
| Thread Size (V) | M8 |
| Bolt Length (L) | 18mm |
| Compression Max Load(Kg) | 36 |
| Deflection(mm) | 1.5 |
| Shear Load (Kg) | 13 |
| Deflectio | 3.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Waisted Range, Thread Size M8, Max Load 30Kg - WMM1380-HT60
£12.28
£12.04
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | HEX1384-60 | WMM1380-HT60 | HEX1385-45 | HEX1383-60 | HEX1384-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 26mm | 34mm | 22mm | 19mm | 26mm |
| Deflection | 2 | 2.7 | 1.5 | 1.2 | 2 |
| Thread | M8 | M8 | M10 | M8 | M8 |
A. Fit is dimensional rather than machine-specific - match a 32 mm diameter body, 23 mm height and M8 thread against your equipment. Search PartsForMachines by the AV part number or these dimensions, or WhatsApp our team to confirm suitability.
A. 36 kg maximum at 1.5 mm deflection, in compression. The published shear rating is 13 kg.
A. Yes - bobbin mounts can be used in shear or compression or a combination of both; they should not be put into tension.
