Product Number: HEX1385-60
The HEX1385-60 is the 60 Shore grade of the 33 x 22 mm hexagon bobbin mount, rated to 57 kg. It offers an economical way to reduce vibration and shock across general industrial duties.
The mount can be loaded in compression or shear or a combination of the two, and the hexagonal metals let the installer hold it with a spanner so the rubber is not twisted during fitting. This size carries hexagonal end metals so the mount can be held with a spanner during installation, avoiding twist in the rubber: M10 thread with a 25 mm stud, on a 33 mm diameter body 22 mm high. Maximum load is 57 kg at 1.5 mm deflection. Stainless steel metals and oil-resistant or high-temperature rubber compounds are available on request.
Alternative grades on this body: HEX1385-45 (29 kg). The footprint and fixings are identical across the family, so grades interchange without rework. Confirm the thread against your fixing before ordering - the body is also produced with alternative threads.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

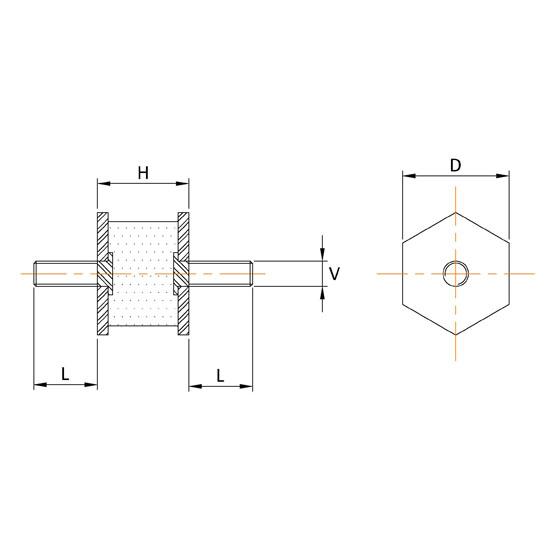

| Rubber Mount Dimension (D) | 33mm |
|---|---|
| Height (H) | 22mm |
| Thread Size (V) | M10 |
| Bolt Length (L) | 25mm |
| Compression Max Load(Kg) | 57 |
| Deflection(mm) | 1.5 |
| Shear Load (Kg) | 14 |
| Deflectio | 2.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Waisted Range, Thread Size M10, Max Load 60Kg - WMM2312-50
£12.42
£12.18
2% OFF
|
Anti-Vibration Mount - Waisted Range, Thread Size M8, Max Load 30Kg - WMM1380-HT60
£12.28
£12.04
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | HEX1386-45 | WMM2312-50 | HEX200-60 | HEX1384-60 | WMM1380-HT60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 25mm | 36mm | 23mm | 26mm | 34mm |
| Deflection | 1.7 | 3 | 1.5 | 2 | 2.7 |
| Thread | M12 | M10 | M8 | M8 | M8 |
A. Fit is dimensional rather than machine-specific - match a 33 mm diameter body, 22 mm height and M10 thread against your equipment. Search PartsForMachines by the AV part number or these dimensions, or WhatsApp our team to confirm suitability.
A. 57 kg maximum at 1.5 mm deflection, in compression. The published shear rating is 14 kg.
A. The grades share the body and fixings and differ in rated load - the alternatives are HEX1385-45 (29 kg). Work out the load per mounting point and pick the grade that covers it.
