Product Number: WMM1380-HT60
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

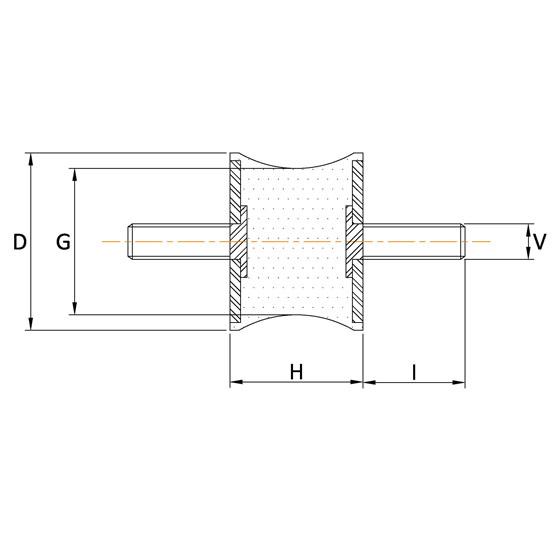

| Outer Dimension (D) | 35mm |
|---|---|
| Inner Dimension (G) | 24mm |
| Height (H) | 34mm |
| Bolt Width (I) | 20mm |
| Thread Size (V) | M8 |
| Max Load (Kg) | 30 |
| Deflection (mm) | 2.7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | HEX1384-60 | HEX1385-45 | HEX200-60 | HEX1383-60 | HEX1384-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 26mm | 22mm | 23mm | 19mm | 26mm |
| Deflection | 2 | 1.5 | 1.5 | 1.2 | 2 |
| Thread | M8 | M10 | M8 | M8 | M8 |

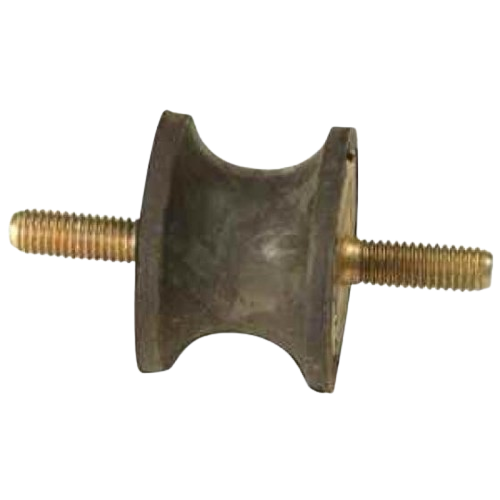

A. The WMM1380 has an outer diameter (D1) of 35 mm, a waist diameter (D2) of 24 mm, a body height (H) of 34 mm, M8 male threads (d), and a stud length (L) of 20 mm.
A. The WMM1380 may be loaded in shear, compression, or a combination of both, giving flexibility to suit different installation geometries and vibration directions.
A. It is suited to industrial machinery and equipment, generator sets, diesel engines, instruments, air-conditioning units, and exhaust mountings, as well as use in construction and off-highway, agricultural, marine, power generation, and automotive applications.
A. The WMM1380 uses rubber-to-metal bonded construction, which maintains structural integrity under sustained vibration cycling, helps extend machinery lifespan, protects surrounding structures, and improves operator comfort.
A. Yes. Stainless steel metalwork, oil-resistant rubber, and high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include the 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, and 15/8.5/15WMM10 for smaller configurations, and the 180/148/75WMM34 and 180/150/75WMM45 for larger heavy-duty requirements.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
