Product Number: 1008MM10-60

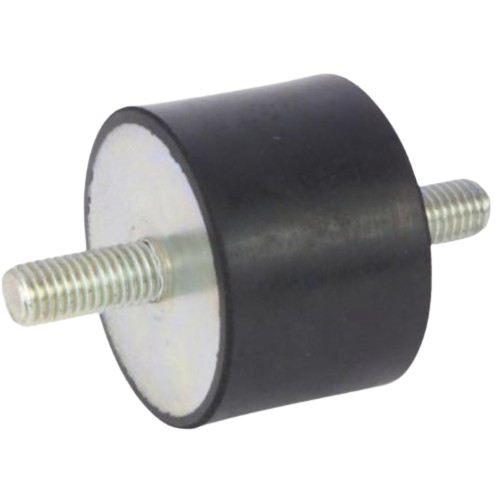

Precision-engineered for lighter, compact and sensitive installations, the 1008MM10-60 is a male-male bobbin anti-vibration mount in the smallest footprint of this geometry series, measuring 10 mm outer diameter by 8 mm height, with an M4 x 10 mm threaded stud at each end. At 60 Shore A hardness, this mid-grade mount is calibrated to deliver a working balance of vibration isolation and structural support, suited to applications where neither excessive deflection nor rigid restraint is desirable. It accepts a maximum load of 4.3 kg per mounting with a rated deflection of 0.6 mm, parameters that position it firmly in the lighter end of the load range and make it a considered choice wherever load control and damping need to coexist without compromise. Constructed using rubber-to-metal bonding, the bobbin may be loaded in shear, compression, or a combination of both, providing mounting flexibility across a variety of orientations. The 60 Shore A rubber compound occupies the broad middle ground of the hardness scale: softer than a firm-grade mount to absorb vibration from sensitive instruments or lightweight machinery, yet firm enough to resist movement where a soft-grade mount would prove insufficiently supportive. Custom options including stainless steel hardware and oil-resistant or high-temperature rubbers are available on request for specialist environments. Typical applications for this bobbin mount span instruments and control equipment, air-conditioning units, compact generator sets, and light industrial machinery and equipment, areas where managing vibration transmission protects surrounding structures, improves operator comfort, and extends machinery service life.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 10mm |
|---|---|
| Height (H) | 8mm |
| Thread Size (V) | M4 |
| Bolt Length (L) | 10mm |
| Max Load (Kg) | 4.3 |
| Deflection (mm) | 0.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1008MF10-60 | 0808MM06-70 | 1111MM10-60 | 1010MF06-60 | 1010MF10-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 08mm | 11mm | |||
| Height | 8mm | 10mm | 10mm | ||
| Size | 10x08mm | 08x08mm | 11x11mm | 10x10mm | |
| Deflection | 0.6 | 0.6 | 0.5 | 0.8 | 0.8 |
| Diameter | 08mm | 11mm | |||
| Diameter Range | Up to 10mm | 11-25mm | |||
| Length Range | Up to 10mm | 11-25mm | |||
| Mount Dimension | 10mm | 10mm | 10mm | ||
| Shore Hardness | 70 | 60 | |||
| Thread | M4 | M3 | M4 | M3 | M4 |
| Show More | |||||
A. The 1008MM10-60 has an outer diameter of 10 mm and a height of 8 mm, with M4 x 10 mm male threaded studs at both ends.
A. This mount carries a maximum load of 4.3 kg per mounting, with a rated deflection of 0.6 mm.
A. The 60 Shore A grade sits in the middle of the hardness range, providing a balance between vibration isolation and load support. It suits applications where a softer grade would allow too much movement and a firmer grade would transmit too much vibration — particularly lighter machinery, instruments, and sensitive equipment.
A. The mount may be loaded in shear, compression, or a combination of both, allowing flexible installation across a range of mounting orientations.
A. Source-confirmed applications include air-conditioning units, instruments, compact generator sets, and light industrial machinery and equipment. The mount family also serves automotive, agricultural, marine, power generation, and construction and off-highway applications.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubbers, plus additional and custom sizes, are available on request.
A. The same 10 x 08 mm geometry is available in 45 Shore A (1008MM10-45) and 70 Shore A (1008MM10-70). Related male-male bobbin mounts include 0808MM06, 100100MM44, 10030MM44, 10040MM44, 10050MM44, and 10055MM44.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
