Product Number: 1010MF06-60
Variations
Striking a balance between vibration isolation and structural support, the 1010MF06-60 is a 10 x 10 mm male-female bobbin mount rated to a maximum load of 4.0 kg with a controlled deflection of 0.8 mm, making it well suited to compact, lightweight installations where neither excessive movement nor rigid restraint is desirable. At 60 Shore A, this medium-hardness grade occupies the practical middle ground of the bobbin range, delivering meaningful attenuation without the compliance of a softer grade or the stiffness of a firmer one. Constructed using rubber-to-metal bonded technology, the mount accepts loading in shear, compression or a combination of both, giving engineers flexibility in orientation and installation geometry. The M4 male stud (thread length 6 mm) and M4 female thread work in straightforward through-bolt or blind-fixing configurations. This balanced hardness grade improves machinery lifespan, protects surrounding structures from transmitted vibration, and contributes to improved operator comfort across a broad range of applications. Typical applications include instrument mountings, light industrial machinery and equipment, air-conditioning units, and automotive ancillaries where a general-purpose medium-grade mount is specified. The mount is also employed in generator sets and agricultural machinery installations where moderate load and controlled deflection are required. The wider family source confirms suitability across construction and off-highway, power generation, marine, railway and mass transit, and military and defence sectors. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for demanding environments.
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 10mm |
|---|---|
| Height (H) | 10mm |
| Thread size (V) | M3 |
| Bolt Length (I) | 6mm |
| Max Load (Kg) | 4 |
| Deflection (mm) | 0.8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1513MF10-45 | 1008MM10-60 | 1008MF10-60 | 0808MM06-70 | 1111MM10-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 13mm | 08mm | 11mm | ||
| Height | 8mm | 8mm | |||
| Size | 15x13mm | 10x08mm | 10x08mm | 08x08mm | 11x11mm |
| Deflection | 1.1 | 0.6 | 0.6 | 0.6 | 0.5 |
| Diameter | 15mm | 08mm | 11mm | ||
| Diameter Range | 11-25mm | Up to 10mm | 11-25mm | ||
| Length Range | 11-25mm | Up to 10mm | 11-25mm | ||
| Mount Dimension | 10mm | 10mm | |||
| Shore Hardness | 45 | 70 | 60 | ||
| Thread | M4 | M4 | M4 | M3 | M4 |
| Show More | |||||

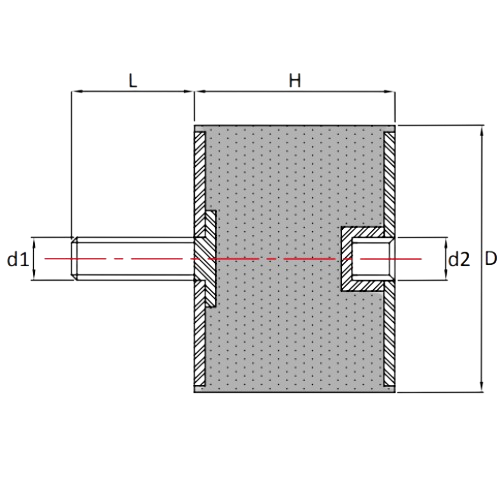

A. The mount body measures 10 mm in diameter by 10 mm in height (D x H). The male stud is M4 with a thread length of 6 mm (d1 x L: M4 x 06), and the female thread is also M4 (d2: M4).
A. The 1010MF06-60 is rated to a maximum load of 4.0 kg with a deflection of 0.8 mm.
A. The 60 Shore A medium grade balances vibration isolation against load-carrying support, making it suitable for the broad middle ground of machinery mounting. Softer grades (such as 45 Shore A) provide greater deflection and better isolation at lower loads; firmer grades (such as 70 Shore A) carry higher loads with less movement. The 60 Shore A grade is the general-purpose choice where neither extreme is required.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation.
A. The 1010MF06-60 is suited to instrument mountings, light industrial machinery and equipment, air-conditioning units, automotive ancillaries, and generator sets, as well as applications in agricultural, marine, railway, and power generation environments.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for environments requiring greater corrosion resistance or elevated operating temperatures.
A. Yes — related male-female bobbin variants include the 45 Shore A grade (1010MF06-45) and the 70 Shore A grade (1010MF06-70) in the same 10 x 10 mm geometry, plus additional sizes: 100100MF44, 10050MF44, 10055MF44, 10060MF44, 10075MF44, and 1008MF10.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
