Product Number: 1515FF04-60
Compact by design, this 15×15mm female-female bobbin mount (SKU 1515FF04-60) delivers a balanced isolation-to-support ratio that places it squarely in the general-purpose middle ground, handling loads up to 11.2 kg with a controlled deflection of 1.3 mm at its 60 Shore A rubber hardness. Where the softer 45 Shore grade prioritises maximum isolation at lower loads and the firmer 70 Shore grade is oriented toward restraint and reduced movement, this medium-grade variant offers a practical equilibrium suited to installations where neither extreme is warranted. The rubber-to-metal bonded construction ensures consistent load transfer across shear, compression, or combined loading modes. At this hardness grade the rubber resists deflection sufficiently to provide structural stability while still absorbing transmitted vibration, making the mount useful across the broad centre of machinery mounting requirements. The M4 female thread on both faces allows direct in-line fastening without additional hardware, simplifying installation in compact assemblies. Female-female bobbins of this family are applied across instrument panels, light industrial machinery, generator sets, air-conditioning units, exhaust mountings, and diesel engine ancillaries, wherever moderate vibration attenuation and a degree of shock absorption are required. Industries including power generation, agricultural equipment, marine, automotive, and construction and off-highway plant are cited application areas for the family. Custom metal specifications including stainless steel, and oil-resistant or high-temperature rubbers, are available on request. This mount is the smallest in the female-female M4 range. The same 15×15mm M4 geometry is also available in 45 Shore A (SKU: 1515FF04-45) and 70 Shore A (SKU: 1515FF04-70).
Female Female Bobbins, also referred to as Type C Bobbins or Type 3 Bobbins are a low cost Anti Vibration Mount, suitable for reducing vibration & shock and a vast array of different applications. They should be used in either Shear or Compression or in a combination, however like all bobbins, not put into tension. Bobbins are available with many different thread Sizes, ranging from M3-M24 and in various lengths. Additional Bobbin Mounts sizes are available on request and can be produced in various grades of Stainless Steel and Oil & High Temperature resistant rubbers.
Applications include - Female / Female Bobbins are a general purpose mounting solution, popular in many different applications & industries including IC Engines, Generating Sets, electronics & various types of Industrial Equipment. Weight ranges from 1kg to 2000Kg per Bobbin.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimension (D) | 15mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (d) | M4 |
| Max Load (kg) | 11.2 |
| Deflection (mm) | 1.3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

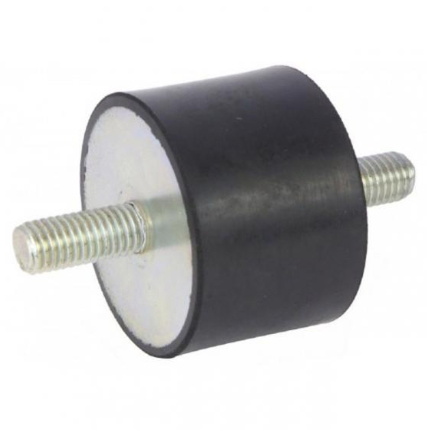

| PRODUCT NUMBER | 1515MF10-60 | 1515MF13-60 | 2530MM18-45 | 2530MM20-45 | 1513MF10-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 30mm | 13mm | ||
| Height | 15mm | 15mm | |||
| Size | 15x15mm | 25x30mm | 25x30mm | 15x13mm | |
| Deflection | 1.3 | 1.3 | 2.7 | 2.7 | 1.1 |
| Diameter | 25mm | 25mm | 15mm | ||
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | ||
| Length Range | 26-50mm | 26-50mm | 11-25mm | ||
| Mount Dimension | 15mm | 15mm | |||
| Shore Hardness | 45 | 45 | 70 | ||
| Thread | M5 | M4 | M6 | M8 | M4 |
| Show More | |||||
A. This mount has a maximum load rating of 11.2 kg and a rated deflection of 1.3 mm, with a rubber hardness of 60 Shore A.
A. The mount has an M4 female thread on both faces and measures 15 mm in diameter by 15 mm in height.
A. This mount may be loaded in shear, compression, or a combination of both, as is standard for the female-female bobbin family.
A. The 60 Shore A grade offers a balance of vibration isolation and load support. The softer 45 Shore A grade (SKU: 1515FF04-45) gives greater deflection and better isolation at lower loads, while the firmer 70 Shore A grade (SKU: 1515FF04-70) carries higher loads with less movement.
A. The family is cited for use with air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and light industrial machinery and equipment. At 60 Shore A, this mount suits general-purpose mounting where moderate isolation and structural stability are both required.
A. Yes — stainless steel metal components, oil-resistant rubbers, and high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
