Product Number: HEX1384-45
The HEX1384-45 is a 32 x 26 mm hexagon bobbin mount in 45 Shore rubber, rated to 16 kg. It is a low-cost route to cutting vibration and shock on general-purpose industrial equipment.
The mount can be loaded in compression or shear or a combination of the two, and the hexagonal metals let the installer hold it with a spanner so the rubber is not twisted during fitting. This size carries hexagonal end metals so the mount can be held with a spanner during installation, avoiding twist in the rubber: M8 thread with a 16 mm stud, on a 32 mm diameter body 26 mm high. Maximum load is 16 kg at 2 mm deflection. Stainless steel metals and oil-resistant or high-temperature rubber compounds are available on request.
Alternative grades on this body: HEX1384-60 (31 kg). The footprint and fixings are identical across the family, so grades interchange without rework. Where per-point loads sit near the top of the rating, step up a grade rather than run at the limit.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

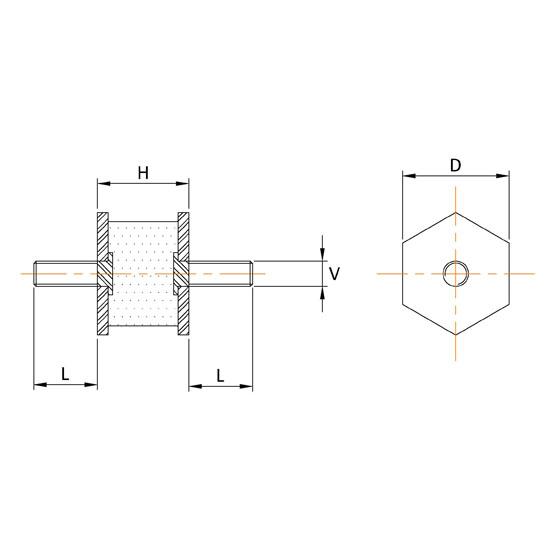

| Rubber Mount Dimension (D) | 32mm |
|---|---|
| Height (H) | 26mm |
| Thread Size (V) | M8 |
| Bolt Length (L) | 16mm |
| Compression Max Load(Kg) | 16 |
| Deflection(mm) | 2 |
| Shear Load (Kg) | 10 |
| Deflectio | 7mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2019WMM18-60 | 2520WMM18-45 | 15/8.5/15WMM10-N60 | 2019WMM18-45 | HEX1382-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 19mm | 20mm | 15mm | 19mm | 16mm |
| Deflection | 2.5 | 3 | 2.1 | 2.5 | 1 |
| Thread | M6 | M6 | M4 | M6 | M6 |
A. Fit is dimensional rather than machine-specific - match a 32 mm diameter body, 26 mm height and M8 thread against your equipment. Search PartsForMachines by the AV part number or these dimensions, or WhatsApp our team to confirm suitability.
A. 16 kg maximum at 2 mm deflection, in compression. The published shear rating is 10 kg.
A. The grades share the body and fixings and differ in rated load - the alternatives are HEX1384-60 (31 kg). Work out the load per mounting point and pick the grade that covers it.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
