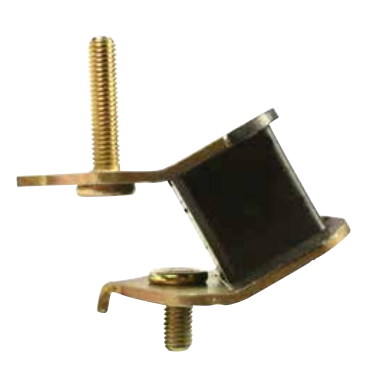

Carrying a maximum load of 39 kg, the L20-2-70 is a 90 mm angle mounting specified in 70 Shore A rubber, the firmest grade in this geometry. And is engineered to hold equipment securely under heavy static loads, shock and impact events where positional stability takes priority over deflection. Rubber-to-metal bonded construction ensures a durable, reliable connection between the rubber element and the steel faces throughout the service life of the mount. At 70 Shore A, the rubber compound resists compression and limits movement under load, making this mount the appropriate selection when machinery must be restrained rather than allowed to float. The angle configuration, with dimensions A 90 mm, B 20 mm, D 40 mm, F 8 mm, C 58 mm and E 62 mm. Suits installations where a right-angle bracket form is required. The mount may be loaded in shear, compression or a combination of both, offering installation flexibility across bracket and frame configurations. This grade is well suited to heavy plant, power generation equipment, agricultural machinery and marine installations where high dynamic loads or shock inputs demand a firm, high-capacity mount. The mount contributes to improved machinery lifespan and protection of surrounding structures, and where correctly specified, supports operator comfort in mobile and static applications across construction and off-highway, railway and mass transit, automotive, and military and defence sectors.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | L20-2-40 | L20-2-60 | HYDVC0.250 | HNG-lower | HNG-upper |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 90mm | 90mm | 88mm | 96mm | 96mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M10 | M8 | M8 | ||
A. The L20-2-70 has a maximum load rating of 39 kg, making it the appropriate selection within the L20-2 range where the highest load capacity is required.
A. The L20-2-70 has the following dimensions: A 90 mm, B 20 mm, D 40 mm, F 8 mm, C 58 mm, E 62 mm.
A. At 70 Shore A, the rubber compound is the firmest grade in this geometry. It carries the highest load with the least deflection and is intended for applications where the mounted equipment must be held securely — particularly under shock, impact or heavy static loads — rather than isolated with maximum flexibility.
A. The L20-2-70 may be loaded in shear, compression or a combination of both, providing installation flexibility across a range of bracket and frame configurations.
A. This mount is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. It is particularly appropriate where heavy loads, shock or impact inputs require a firm, high-capacity mounting solution.
A. Yes. The same 90 mm angle geometry is available in 40 Shore A (L20-2-40) and 60 Shore A (L20-2-60). Related angle mounting families at different footprints include AM47 and AM54. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are also available on request.
