Product Number: CM6051/16A
Variations
Carrying the upper end of the load range for the 60 mm cone mount family, CM6051/16A is a Type A rubber-to-metal bonded cone (cab) mount engineered to deliver high horizontal stiffness relative to vertical stiffness, precisely the characteristic demanded where heavier engines, cabs and off-highway equipment must be restrained against lateral movement without sacrificing vertical compliance. With a compressed-height band of 78–84 mm, an overall free length L1 of 106 mm, and a lower section length L2 of 68 mm, this mount is dimensioned for installations where axial depth and flange geometry must align with existing mounting structures. The cone mount geometry inherently biases horizontal stiffness, making it well suited to applications that load the mount in shear, compression, or a combination of both. Rubber-to-metal bonded construction ensures durable load transfer across the interface, protecting surrounding structures from vibration-induced fatigue and improving operator comfort in the cab. The failsafe design characteristic of this cone mount family makes it particularly appropriate for mobile applications where mount failure must not result in uncontrolled component separation. CM6051/16A is specified for use across construction and earth-moving machinery, agricultural equipment, operator cabs, and off-highway vehicles. Its upper-range load capacity within the 60 mm A-type band also makes it relevant to power generation, marine, railway and mass transit, automotive, and military and defence installations where vibration isolation and structural protection are required simultaneously.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 60 |
| Width / dimension B (mm) | 45 |
| Across flats / clearance CF (mm) | 78 - 84 |
| Diameter / thread d1 (mm) | 54 |
| Diameter / thread d2 (mm) | 54 |
| Dimension F1 (mm) | 16 |
| Dimension F2 (mm) | 11 |
| Length L1 (mm) | 106 |
| Length L2 (mm) | 68 |
| Thickness S1 (mm) | 2.5 |
| Thickness S2 (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

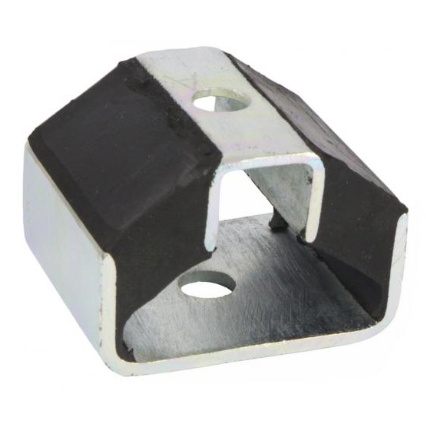

| PRODUCT NUMBER | UU1492-40-40 | UU1482-50-50 | UU1482-40-40 | UU1481-60-60 | UU1481-50-50 | UU1481-40-40 |
| Thread Size | M10 | |||||
| Mount Type | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings |
| Size Band | 51–75mm | 51–75mm | 51–75mm | 51–75mm | 51–75mm | 51–75mm |
| Hardness Shore | 40 | 50 | 40 | 60 | 50 | 40 |
A. CM6051/16A has an M16 top fixing thread (F1) and an M11 lower fixing thread (F2), as specified in the product data.
A. The mount has a 60 mm A-dimension, 45 mm B-dimension, D1 and D2 both 54 mm, a free length L1 of 106 mm, lower section length L2 of 68 mm, and a compressed-height band (CF) of 78–84 mm.
A. Static deflection values are S1 2.5 mm and S2 3.0 mm, as stated in the product specification.
A. It is designed for use on construction, earth-moving and agricultural machinery, operator cabs, and off-highway vehicles. It is also used across power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — cone mounts in this family may be loaded in shear, compression, or a combination of both, as confirmed in the product source data.
A. Cone mounts offer high horizontal stiffness relative to vertical stiffness, making them effective for controlling lateral movement of engines, cabs and equipment. The failsafe design also makes them ideal for mobile applications.
A. Yes — the family includes CM6051/12A and CM6051/12B (M12 top-thread variants) and CM6051/16B (M16 alternative geometry), all sharing the 60 mm A-dimension.
A. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers, plus additional and custom sizes, are available on request.
