Product Number: CB1650-45
Variations
Vibration isolation takes priority over restraint with the CB1650-45, a 45 Shore A soft-grade cone cab mount sized at 105 mm (dimension A) and rated to a maximum load of 300 kg. At the soft end of the CB1650 hardness range, this grade is designed for applications where maximum deflection and low-frequency vibration absorption matter most, making it the right choice where protecting sensitive equipment or optimising operator comfort is the primary engineering objective. The rubber-to-metal bonded construction combines high horizontal stiffness relative to vertical stiffness, delivering controlled movement management across operator cabs, engine installations and mounted equipment. The cone (cab) geometry is engineered with a failsafe design suited to mobile and off-highway environments, where dynamic loading and continuous vibration are constant operational factors. At 45 Shore A, the softer rubber compound allows the greatest deflection within the CB1650 family, producing superior vibration attenuation at lower load inputs compared with medium or firm grades. Dimensionally, the mount runs 105 mm at A, 75 mm at B, 46 mm at C, with thread dimensions of 16.2 mm (D), 22 mm (E), 17 mm (F) and 20 mm (G). Installed height spans H Min 75.25 mm to H Max 75.75 mm, with I Min at 105 mm. Mounts may be loaded in shear, compression or a combination of both. Industries served by this geometry include construction and off-highway, agriculture, power generation, marine, railway and mass transit, and military and defence.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

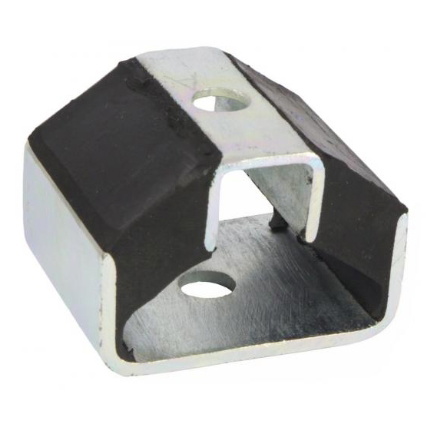

| PRODUCT NUMBER | UU50-70*-70 | UU50-60*-60 | UU50-40*-40 | UU20-70*-70 | UU20-60*-60 | UU20-40*-40 |
| Thread Size | M10 | |||||
| Mount Type | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings | UU Shear Mountings |
| Size Band | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm |
| Hardness Shore | 70 | 60 | 40 | 70 | 60 | 40 |
A. A 45 Shore A rating places this mount at the soft end of the hardness scale. Softer grades allow greater deflection under load and deliver better vibration isolation at lower load inputs, making this grade suited to lighter or sensitive equipment and applications where low-frequency vibration attenuation takes priority over stiffness and restraint.
A. The CB1650-45 has a maximum load rating of 300 kg.
A. The mount dimensions are: A 105 mm, B 75 mm, C 46 mm, D 16.2 mm, E 22 mm, F 17 mm, G 20 mm. Installed height ranges from H Min 75.25 mm to H Max 75.75 mm, with I Min at 105 mm.
A. The CB1650-45 can be loaded in shear, compression, or a combination of both.
A. This mount is designed for operator cabs, engine installations and equipment on construction, earth-moving and agricultural machinery, as well as off-highway vehicles. It is also used across power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes. The CB1650-60 offers a firmer 60 Shore A grade for higher load or greater stiffness requirements. The CB1650/1-45 is an extended-stud variant in the same soft grade. The CB1814 provides a related mount profile for different installation geometries.
A. Yes. Stainless steel metals and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
