The SF150 is a rubber-to-metal bonded SF mount fitted with an M12 thread, dimensioned at 215 mm (Z) × 150 mm (L) × 185 mm (T) with a height of 45.7 mm and a maximum load capacity of 460 kg. Designed to provide vibration isolation for sensitive instruments, electronics and light equipment, this mount is well suited to applications where protecting delicate components and the structures around them is the priority. Constructed using rubber-to-metal bonded technology, the SF150 delivers reliable isolation performance across a range of loading modes, shear, compression or a combination of both. The bonded construction ensures consistent behaviour under operating loads, helping to extend machinery service life, protect adjacent structures and improve operator comfort over time. With an inner thread of M12 and a stud length specification of 3 (S: 3), the SF150 is dimensioned for installations where space and load are at the lighter end of the application range. It is suited to industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. The mount is also available with stainless steel metalwork and oil-resistant or high-temperature rubbers on request, as well as in additional custom sizes. The SF mount range includes further sizes for different load and deflection requirements: SF50 and SF100 for lower load applications, and SF200 where a larger format is needed. Refer to each variant by its bracketed SKU when specifying. This mount is supplied as a single unit.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Dimension Z (mm) | 215 |
|---|---|
| Length L (mm) | 150 |
| Thickness T (mm) | 185 |
| Overall height H (mm) | 45.7 |
| Thread / stud size M | M12 |
| Dimension I (mm) | 37 |
| Plate / metal thickness S (mm) | 3 |
| Max load (kg) | 460 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

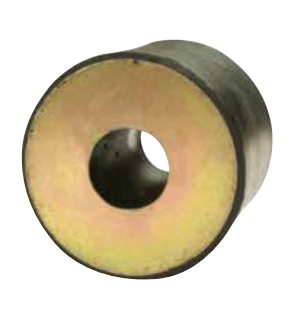

| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The SF150 SF Mount has the following specifications: Z 215 mm, L 150 mm, T 185 mm, height 45.7 mm, thread M12, inner dimension I 37 mm, stud S 3, and a maximum load capacity of 460 kg.
A. The SF150 can be loaded in shear, compression, or a combination of both, making it adaptable to a range of mounting orientations and installation requirements.
A. The SF150 is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes. Please contact PartsForMachines to discuss your requirements.
A. The SF mount range also includes the SF50 and SF100 for lower load applications and the SF200 for a larger format. Each variant is identified by its bracketed SKU on the product listing.
A. Softer rubber grades provide greater deflection and better vibration isolation at lower loads, while harder grades carry higher loads with less movement. The SF150 uses rubber-to-metal bonded construction to deliver consistent isolation across its rated load range.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
