Product Number: CM6051/12A
Variations
Engineered to control movement across demanding mobile installations, the CM6051/12A is a 60 mm Type A cone mount with an M12 top fixing (F1: 12) and an M11 base fixing (F2: 11.0), built to give high horizontal stiffness relative to vertical stiffness where engine, cab and equipment movement must be managed without compromise. At the smallest end of the 60 mm cone mount range, this SKU is defined by its load and deflection characteristics, making it the appropriate choice where controlled isolation at moderate load is the primary requirement. Rubber-to-metal bonded construction gives the mount its structural integrity and long service durability. The failsafe design is specifically suited to mobile applications where accidental overload or rubber degradation must not result in catastrophic disconnection. A compression factor (CF) of 78–84 governs the mount's resistance behaviour under load, complemented by deflection ratings of S1: 2.5 mm and S2: 3.0 mm. Mounts in this family may be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation. Rubber hardness is calibrated for greater deflection and better isolation at the load range this size serves, consistent with the softer-grade application emphasis of protecting sensitive assemblies and improving operator comfort. The CM6051/12A is suited to construction, earth-moving and agricultural machinery, operator cabs, and off-highway vehicles across industries including construction, agriculture, power generation, marine, railway and mass transit, and military and defence applications.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 60 |
| Width / dimension B (mm) | 45 |
| Across flats / clearance CF (mm) | 78 - 84 |
| Diameter / thread d1 (mm) | 54 |
| Diameter / thread d2 (mm) | 54 |
| Dimension F1 (mm) | 12 |
| Dimension F2 (mm) | 11 |
| Length L1 (mm) | 106 |
| Length L2 (mm) | 68 |
| Thickness S1 (mm) | 2.5 |
| Thickness S2 (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

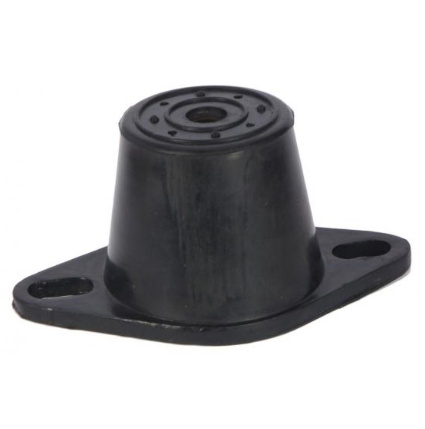

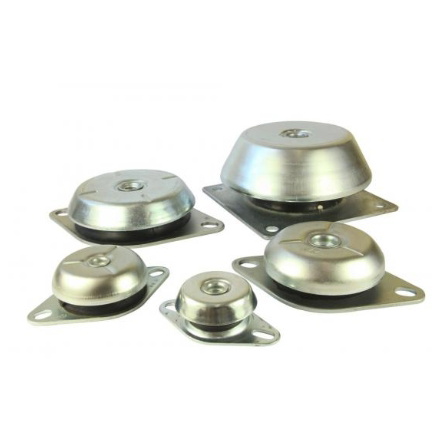

| PRODUCT NUMBER | CTM6535 | CTM-R | TML10500-65-65 | TML10320-55-55 | TML10185-45-45 | TML |
| Thread Size | M12 | M12 | M12 | M12 | M12 | M12 |
| Mount Type | Captive Transit Mounts | Captive Transit Mounts | Turret Mountings | Turret Mountings | Turret Mountings | Turret Mountings |
| Size Band | 51–75mm | 51–75mm | 126mm+ | 126mm+ | 126mm+ | 126mm+ |
| Hardness Shore | 65 | 55 | 45 | |||
A. The CM6051/12A has an overall diameter (A) of 60 mm and a base diameter (B) of 45 mm, with D1 and D2 both at 54 mm. The top fixing is M12 (F1: 12) and the base fixing is M11 (F2: 11.0). Overall height L1 is 106 mm and L2 is 68 mm.
A. The CM6051/12A has a compression factor (CF) of 78–84. Deflection ratings are S1: 2.5 mm and S2: 3.0 mm, reflecting the isolation and movement-control characteristics of the Band A load range.
A. This cone mount is designed for operator cabs, engines, and equipment on construction, earth-moving and agricultural machinery, as well as off-highway vehicles. It is also suited to power generation, marine, railway, mass transit, and military and defence installations where controlled vibration isolation is required.
A. Cone (cab) mounts offer high horizontal stiffness relative to vertical stiffness, which is specifically valuable for controlling the movement of engines, cabs, and equipment in mobile applications. The failsafe design means the mount remains secure even under adverse operating conditions, making it ideal for off-highway and mobile machinery.
A. Yes. Cone mounts in this range may be loaded in shear, compression, or a combination of both, giving flexibility in how the mount is installed and orientated within a machine structure.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, in addition to custom sizes. Contact PartsForMachines to discuss specific requirements.
A. The 60 mm range includes four variants: CM6051/12A (M12, Band A — this product), CM6051/12B (M12, Band B), CM6051/16A (M16, Band A), and CM6051/16B (M16, Band B). Select the variant that matches your fixing size and required load band.
