Product Number: CDM80-65-65
Variations

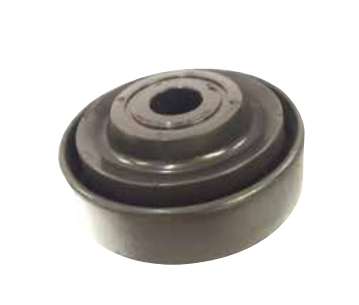

Compact yet capable, the CDM80-65-65 is an 80 mm cone (cab) mount with M16 fixing and a 65 Shore A rubber hardness rating, carrying loads up to 200 kg with minimal deflection, making it the right choice where lighter, more sensitive installations demand firm control in a smaller footprint. Its rubber-to-metal bonded construction keeps the unit secure under sustained vibration, and the failsafe cone geometry delivers high horizontal stiffness relative to vertical stiffness, restraining lateral movement of engines, cabs and equipment without allowing unwanted shift under shock or impact loading. The 65 Shore A grade is the firm option within the CDM 80 range. Harder grades carry higher loads with less movement, so this mount suits applications where the assembly must be held positively in place rather than allowed to deflect freely. Mounts may be loaded in shear, compression or a combination of both, giving installation flexibility across varied mounting configurations. The failsafe design is particularly well suited to mobile applications where unexpected shock events must be absorbed without loss of positional control. Key dimensions are: outer diameter (D) 80 mm, inner diameter (d) 16.2 mm, intermediate diameter (D1) 37.8 mm, overall height (H) 41.5 mm, rubber height (H1) 32 mm, and compressed height (C) 37.9–38.2 mm. The E dimension is 19/20 mm. The M16 bolt accepts a maximum torque of 240 N/m. Maximum rated load is 200 kg.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM12548 | CTM11548 | CTM10850 | BM10555MM36 | BM10555MM17 | BM10555MF17 |
A. The CDM80-65-65 is rated to a maximum load of 200 kg.
A. The mount uses an M16 bolt with a maximum tightening torque of 240 N/m.
A. Outer diameter (D) 80 mm, inner diameter (d) 16.2 mm, intermediate diameter (D1) 37.8 mm, overall height (H) 41.5 mm, rubber height (H1) 32 mm, compressed height (C) 37.9–38.2 mm, and E dimension 19/20 mm.
A. According to the product data, harder grades carry higher loads with less movement. The 65 Shore A is the firm option in the CDM 80 range, suited to applications where the assembly must be held positively in place and where shock or impact loading must be absorbed without significant positional shift.
A. The CDM cone mount family is designed for construction and earth-moving machinery, agricultural equipment, operator cabs, off-highway vehicles, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — the mount may be loaded in shear, compression, or a combination of both, allowing flexible orientation to suit varied installation configurations.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional custom sizes.
