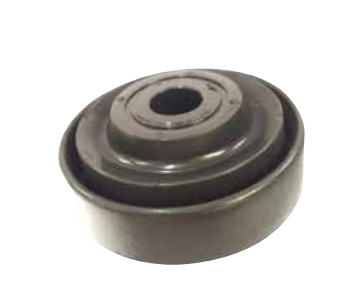

Product Number: CDM110-45-45
Sensitive installations and lighter off-highway equipment benefit most from a cone mount that prioritises vibration isolation over restraint, and the CDM110-45-45 is engineered precisely for that role. At 110 mm outer diameter with an M20 (or M22) bolt fixing, its 45 Shore A rubber delivers the high deflection and low dynamic stiffness that lighter loads demand, attenuating lower-frequency vibration effectively where a firmer grade would transmit rather than absorb it. Maximum bolt torque is 502 Nm for the M20 fixing or 685 Nm for the M22, and the mount is rated to a maximum load of 230 kg. The CDM110-45-45 shares the family's proven rubber-to-metal bonded construction, in which the elastomer is chemically bonded to the metal components for a failsafe assembly that resists separation under dynamic loading. The geometry delivers high horizontal stiffness relative to vertical stiffness, giving lateral stability and controlled movement in mobile environments while the soft 45 Shore A compound absorbs vertical shock and vibration. The mount may be loaded in shear, compression, or a combination of both. Typical applications draw from construction and earth-moving machinery, agricultural equipment, operator cabs, and off-highway vehicles where passenger comfort and the protection of sensitive electronics or instrumentation depend on effective low-frequency isolation. The mount also serves power generation, marine, and railway and mass transit installations where compact dimensions and softer characteristics suit lighter or vibration-sensitive plant. This SKU is the 110 mm, 45 Shore A variant.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CDM110-55-55 | CDM110-65-65 | CB1650-45 | CB1650-60 | CB1650/1-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 110mm | 110mm | 105mm | 105mm | 105mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M20 | M20 | |||
A. The CDM110-45-45 is rated to a maximum load of 230 kg.
A. The mount accepts an M20 or M22 bolt. Maximum bolt torque is 502 Nm for M20 and 685 Nm for M22.
A. Softer grades of rubber such as 45 Shore A give greater deflection and better vibration isolation at lower loads. This makes the 45 Shore A grade suited to lighter or vibration-sensitive equipment and lower-frequency isolation where absorbing movement matters more than resisting it.
A. The main dimensions are: d 22.5 mm, D 110 mm, D1 56.9 mm, H 51.5 mm, H1 39 mm, C 57.2–57.5 mm, E 25 mm.
A. The mount may be loaded in shear, compression, or a combination of both, and the cone geometry provides high horizontal stiffness relative to vertical stiffness to control movement in mobile applications.
A. The CDM110-45-45 is suited to construction and earth-moving machinery, agricultural equipment, operator cabs, off-highway vehicles, power generation, marine, and railway and mass transit installations where lighter or sensitive plant requires effective low-frequency isolation.
A. Yes. The 110 mm footprint is also offered in 55 Shore A (CDM110-55) and 65 Shore A (CDM110-65). A larger 130 mm version is available at 45, 55, and 65 Shore A (CDM130-45, CDM130-55, CDM130-65), and a compact 66 mm variant is offered in the same three grades (CDM66-45, CDM66-55, CDM66-65). Custom sizes and materials are also available on request.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, along with additional and custom sizes, are available on request.
